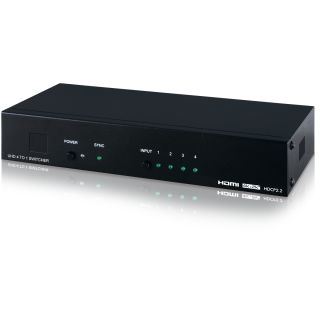

This 4×1 HDMI switcher is the most advanced HDMI solution for true Ultra
High-Definition signal routing. This unit allows for the switching of any of
four 18Gbps HDMI input signals to a single 18Gbps HDMI display device.
Resolutions up to 4096×2160@60Hz (4:4:4), 16-bit Deep Color, HDR (High
Dynamic Range), HD audio as well as other features defined by the HDMI 2.0
specification are supported. Multiple control interfaces are available including
RS-232, Ethernet (WebGUI & Telnet), IR remote and front-panel buttons making
operation easy and intuitive.
- Supports data rates up to 18Gbps and Deep Color (16-bit) up to 1080p
- Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio
formats
- Remotely controllable via Ethernet (WebGUI & Telnet), RS-232 and IR
remote
| Interfaces | |
|---|
| Input Port | |
| Output Port | |
| Control I/O | - 1×IR Extender (3.5mm)
- 1×RS-232 (DB-9)
- 1×IP Control (RJ45)
|
| Video | |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Types | - 4096x2160@60Hz YUV 4:4:4 8-bit
|
| Output Signal Type | - 4096x2160@60Hz YUV 4:4:4 8-bit
|
| Resolutions | | |
|---|
| Maximum Input | HDMI | |
| Maximum Output | HDMI | |
| Audio | | |
|---|
| | HDMI | - LPCM (8 Channels), Bitstream, HD Bitstream
|
| Power | |
|---|
| Power Supply | |
| Power Consumption | |
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 240mm×43mm×104mm [Case Only]
- 240mm×48mm×112mm [All Inclusive]
|
| Weight | |
| Field Firmware Update | |
|---|
| Interface | |
| Ordering Information | |
|---|
| Model No. | Product Description |
| CPLUS-V4H1HP | |
