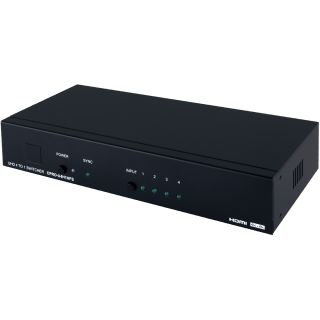

UHD 4 to 1 Switcher - Cypress CPRO-U4H1HFS

UHD 4 to 1 Switcher - Cypress CPRO-U4H1HFS

Artikelnummer: CYP-CPRO-U4H1HFS
HAN: CPRO-U4H1HFS
Kategorie: Switches
Hersteller: Cypress Technology

The 4 by 1 HDMI Switcher enables the switching of four HDMI sources to a single HDMI output, allowing a display or AV Receiver t ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The 4 by 1 HDMI Switcher enables the switching of four HDMI sources to a single HDMI output, allowing a display or AV Receiver to select between four devices. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. It supports 4K2K, 3D, 36-bit Deep Color, Hi-Def. lossless audio and other features defined by the latest HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232, Telnet and WebGUI control.

Select any one of four HDMI sources and display on a HDTV display with fast switching between sources
Supports 3D signals pass-through
Supports HDTV resolutions up to 4096x2160@60Hz YUV 4:2:0
Supports selection of Standard (Fixed) or TV (Downstream) EDID settings
Supports Audio pass-through of High-definition Audio formats (LPCM 2/5.1/7.1CH, Bitstream, HD Bitstream
HDMI inputs support ‘Standard’ and ‘Apple’ HDCP modes. Selecting ‘Apple’ mode guarantees the compatibility of Apple devices with this switcher
Supports Telnet and WebGUI control

Interfaces
Input Port	4 x HDMI (Type-A)
Output Port	1 x HDMI (Type-A)
Control Port	1 x Control (RJ-45) 1 x RS-232 (DB-9) 1x IR IN (3.5mm)
Service Port	1 x USB (Type-A)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	HDCP 1.4
Input Signal Types	4096x2160@60Hz YUV 4:2:0 8-bit
Output Signal Type	4096x2160@60Hz YUV 4:2:0 8-bit

Resolutions
Maximum Input	HDMI	4096×2160p@60 4:2:0
Maximum Output	HDMI	4096×2160p@60 4:2:0

Audio
	HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
	DP	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
	SFP+	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
	Line In	1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)
	Line Out	1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	5VDC/2.6A
Power Consumption	4W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	240 mm x 43 mm x 104 mm [Case Only] 240 mm x 43 mm x 111.2 mm [All Inclusive]
Weight	798g

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CPRO-U4H1HFS	UHD 4 to 1 Switcher
