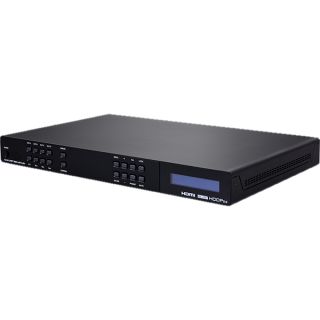

This 4K UHD 4 by 4 Matrix provides the ability to connect up to four 4K UHD
HDMI sources to up to four 4K UHD HDMI displays and freely switch between
them. This unit comes with full support for 18Gbps (600Mhz) resolutions up
to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep
Color, HDR (High Dynamic Range), HD audio and other features defined by the
HDMI 2.0 specification. With a comprehensive EDID management feature that
includes the ability to select between built in default EDID, EDID copied from
connected sink devices, as well as a configurable EDID, this matrix can solve
many interconnectivity problems. The built in OSD has the ability to display
user editable general information text so each output can display up to 2 lines
of customized text on top of the video source in the color of your choice. This
unit provides an intuitive set of front panel controls with an OSD as well as
RS-232, telnet, WebGUI, and IR remote control options.
- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- DVI 1.0 compliant with the use of an HDMI-DVI adaptor
- Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) &
4096x2160@60 Hz (YUV 4:4:4, 8-bit)
- Supports 16-bit Deep Color up to 1080p60
- Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio
formats
- Supports six internal EDIDs, four external EDIDs copied from connected
devices, and four user provided EDIDs
- OSD with user customizable information text
- Intuitive control interface including telnet, WebGUI, OSD, IR remote and
RS-23
Interfaces | |
---|
Input Port | |
Output Port | - 4 HDMI
- 4 Stereo Audio ( 3.5mm )
|
Bi-directional Port | |
Control I/O | - 1 Control (RJ 45)
- 1 RS-232 (9-pin D-sub)
|
Video | |
---|
HDMI Compliance | |
HDCP Compliance | |
Input Signal Types | - 4096x2160p@60 8-bit YUV 4:4:4, HDR 10
|
Output Signal Type | - 4096x2160p@60 8-bit YUV 4:4:4, HDR 10
|
Resolutions | | |
---|
Maximum Input | HDMI | |
Maximum Output | HDMI | |
Audio | |
---|
Digital Formats | HDMI 7.1 CH LPCM, Bitstream, HD Bitstream |
Power | |
---|
Power Supply | |
Power Consumption | |
Enclosure | |
---|
Chassis Material | |
Chassis Color | |
Dimensions (W×H×D) | - 438mm×49mm×269mm [Case Only]
- 482mm×49mm×274mm [All Inclusive]
|
Weight | |
Field Firmware Update | |
---|
Interface | |
Ordering Information | |
---|
Model No. | Product Description |
CPLUS-V4H4HPA | - A UHD+ 4x4 Matrix with Audio Output
|
