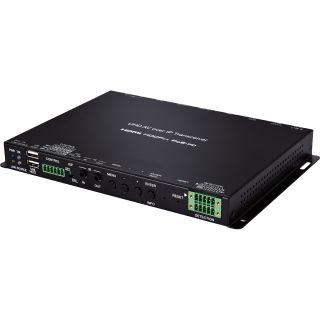

UHD AV over IP Transceiver - Cypress CH-U331TR-E

UHD AV over IP Transceiver - Cypress CH-U331TR-E

Artikelnummer: CH-U331TR-E
HAN: CH-U331TR-E
Kategorie: Wide Temperature Applications
Hersteller: Cypress Technology

CH-U331TR-E is a Dual-Format 4K UHD AV over IP Transceiver with innovation design of integrate Transmitter and Receiver into one ...

740,94 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

CH-U331TR-E is a Dual-Format 4K UHD AV over IP Transceiver with innovation design of integrate Transmitter and Receiver into one unit; User could able to switch unit into Transmitter or Receiver by the needs. The Transceiver supports the transmission of Ultra High-Definition signals (up to 4K@30Hz, 4:4:4 or 4K@60Hz, 4:2:0) with audio and USB up to 100 meters on a single cable. The transmission distance can be further extended (up to 100 meters per segment) by using gigabit network switches, or using SFP fiber cable to extend (up to 550m~2km, depends on the Fiber module that been used), allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network.

Video, audio, and control transmission over TCP/IP in Unicast(point-to-point) or Multicast (single-to-many, many-to-many) modes
The analog Line In sends audio directly to the analog Line Out and is inserted into the HDMI output
Unit may powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
Supports USB keyboard, mouse and storage extension
Device has an info OSD and can be controlled via WebGUI, Telnet, and front panel controls
Depends on different site scenario to configure as Transmitter or Receiver and easy maintain the stock and spare unit

Interfaces
Input Port	1 HDMI (Type-A) 1 DisplayPort 1 Unbalanced Stereo (3.5mm)
Output Port	1 HDMI (Type-A) 1 Unbalanced Stereo (3.5mm)
Bidirectional Port	1 SFP 1 Cat.5e/6/7 (LAN)
Control I/O	8 trigger [terminal block, Ox4, Ix4] 2 USB (Type-A) 1 USB (Type-B) 1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS232 (6-pin Terminal Block)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Types	4096x2160p@60 12bit YUV 4:2:0
Output Signal Types	TX	Bypass	4K@60
RX	Bypass	(local input)
4096x2160p@30 8bit RGB	(over IP)
Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
DP	4096×2160p@60Hz YUV 4:2:0
Maximum Output	HDMI	4096×2160p@60Hz YUV 4:2:0

Audio
HDMI	LPCM (8 Channels), Bitstream bypass
Line In	2 Vrms
Line Out	2 Vrms

Power
Power Supply	5V/4A
Power Consumption	18.92W (Full load)

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×167mm [All Inclusive]
Weight	929g

Field Firmware Update
PC Update, WebGUI

ORDERING INFORMATION
Model No.	Product Description
CH-U331TR	UHD AV over IP Transceiver
CDPS-CS7	AV over IP Master Controller
CH-U331TX	UHD+ HDMI/VGA over IP Transmitter with KVM Extension
CH-U331RX	UHD+ HDMI/VGA over IP Receiver with KVM Extension
CH-331H-TX	HDMI over IP Transmitter
CH-331H-RX	HDMI over IP Receiver

Wide Temperature Series (operating at -20 ~ 70°C)
Model No.	Product Description
CH-U331TR-E	UHD AV over IP Transceiver
CH-U350HTX-E	HDMI/VGA over IP Transmitter with USB/KVM Extension
CH-U353RX-E	UHD Video over IP RX
CDPS-CS7-E	AV over IP Master Controller
