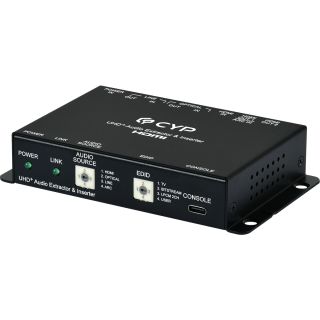

UHD+ Audio Extractor & Inserter - Cypress AUD-MF341-B1

UHD+ Audio Extractor & Inserter - Cypress AUD-MF341-B1

Artikelnummer: AUD-MF341-B1
HAN: AUD-MF341-B1
Kategorie: Processor
Hersteller: Cypress Technology

This Audio Extractor & Inserter can extract audio from a HDMI source, an optical source, or an analog source. It allows the user ...

262,23 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Audio Extractor & Inserter can extract audio from a HDMI source, an optical source, or an analog source. It allows the user to convert high quality audio into HDMI, analog or optical signals for use with powered speakers or different signal AV receivers. Both HDMI input and output ports support resolutions up to 4K@60Hz (4:4:4, 8-bit) and are capable of providing high quality audio and video performance, which enable the user to pass through HDMI video source to two HDMI outputs. Built-in EDID management allows the user selecting from multiple EDIDs and editing an user provided EDID.

HDCP 1.4 and 2.2 compliant
Supports bypass of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
Analog audio extraction supports format: LPCM 2.0
Optical S/PDIF audio extraction supports formats: LPCM 2.0 & Bitstream
EDID management includes TV, Bitstream, LPCM 2CH, and 1 user modifiable EDID

Interfaces
Input Port	1 HDMI (Type-A) 1 Optical (S/PDIF) 1 Analog Stereo (3.5mm)
Output Port	2 HDMI (Type-A) 1 Optical (S/PDIF) 1 Analog Stereo (3.5mm)
Control I/O	1 USB (Type-C)

Video
HDMI Compliance	HDMI 2.0
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:4:4
		Resolutions
Maximum Input	HDMI	3840×2160p@60 YUV 4:4:4
Maximum Output	HDMI	3840×2160p@60 YUV 4:4:4

Audio
HDMI	LPCM (2 Channels)
Line In	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)
Line Out	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	5V/3A DC
Power Consumption	3.5W

Enclosure
Chassis Material	Metal (Galvanized Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×75mm×25mm [Case Only] 128mm×79mm×25mm [All Inclusive]
Weight	300g

Field Firmware Update
PC

ORDERING INFORMATION
Model No.	Product Description
AUD-MF341-B1	UHD+ Audio Extractor & Inserter
