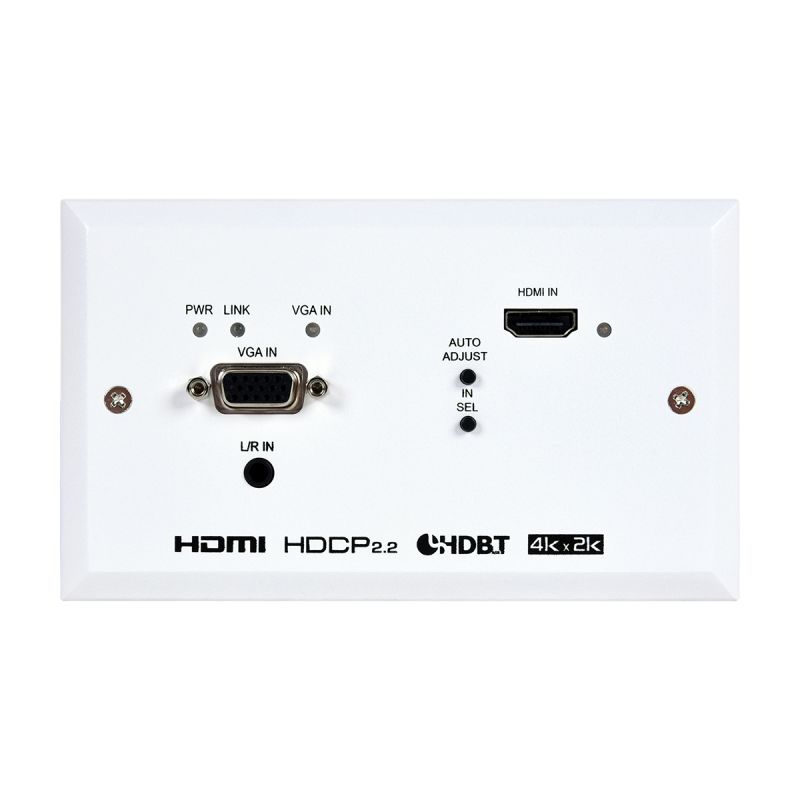

UHD HDMI/VGA over HDBaseT Wallplate Transmitter - Cypress CH-2538TXPLWPEUK

Artikelnummer: CH-2538TXPLWPEUK

Herstellernummer: CH-2538TXPLWPEUK

This wallplate is an HDMI/VGA switch with audio embedding and HDBaseT output. This unit can send high definition uncompressed au ...

Kategorie: Extenders


Preis auf Anfrage
Muss bestellt werden. Ab Bestellung lieferbereit in 35 Tagen.

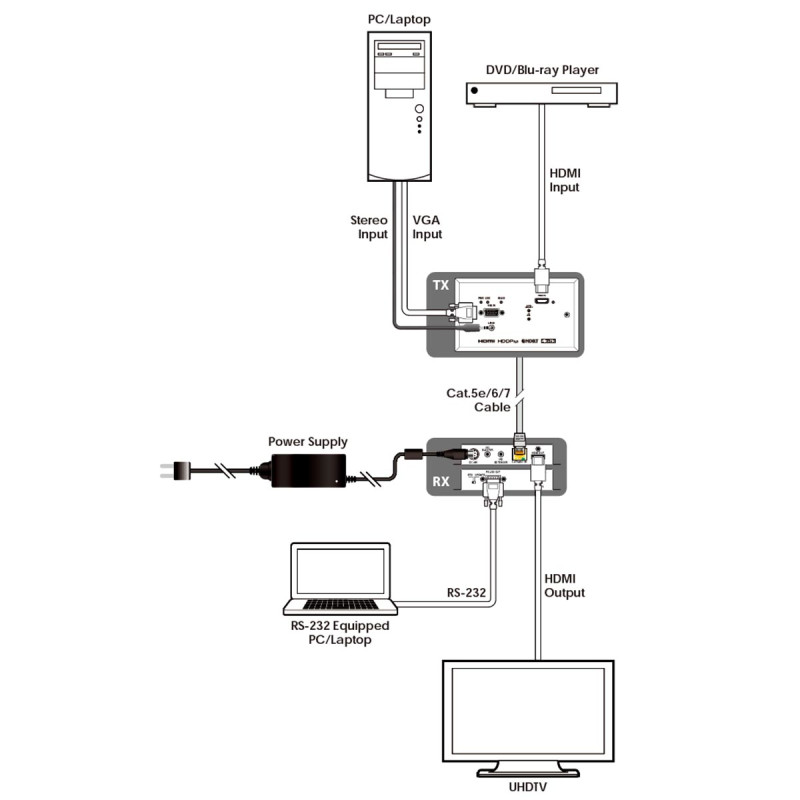

This wallplate is an HDMI/VGA switch with audio embedding and HDBaseT output. This unit can send high definition uncompressed audio/video along with Ethernet over a single cable up to a distance of 70 meters at 1080p@60Hz and 35m at 4K. To provide maximum compatibility with a wide range of display types, all sources will be automatically scaled to match the preferred resolution and timing of the connected display (as reported by the display?s EDID). This unit also supports automatic input selection between the HDMI and VGA inputs, with hot plug detection, enabling hands-free operation. It may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver.

  • 1 HDMI input, 1 VGA input with 3.5mm mini-jack audio input
  • Supports VGA input resolutions up to WUXGA (RB)
  • Automatic conversion of 4K@50/60Hz HDMI sources to 4K@30Hz (4:4:4, 8-bit) for transmission over HDBaseT
  • Automatic scaling of sources to match the native resolution of the HDMI display based on EDID
  • HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (Ethernet bypass)
  • Simultaneous transmission of uncompressed video, audio and data over a single 70m Cat.5e/6/7 cable at 1080p and 35m at 4K
  • Automatic input selection with hot plug detection enabling hands-free operation
  • Unit may be powered locally or via 48V PoH (PD) from a compatible HDBaseT Receiver (PSE)

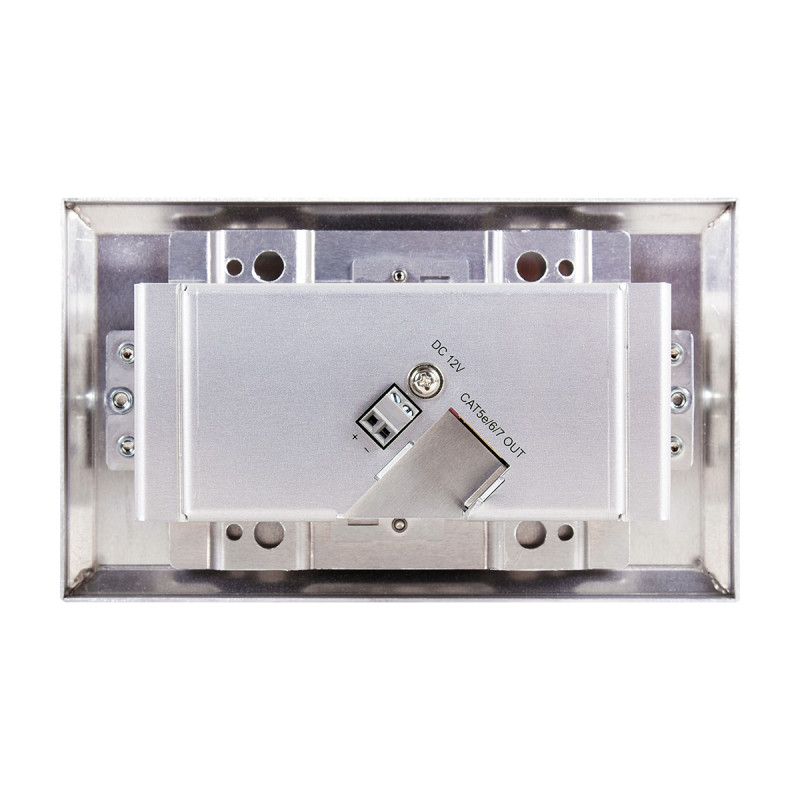

  • Wall plate is designed for EU two-gang sized enclosures
Interfaces
Input Port
  • 1 HDMI (Type-A)
  • 1 VGA (HD-15)
  • 1 Stereo Audio (3.5mm)
Output Port
  • 1 HDBaseT (RJ45)
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.X
Input Signal Types
  • 4K@60 8-bit YUV 4:4:4
Output Signal Type
  • 4K@60 8-bit YUV 4:2:0
Resolutions
Maximum Input
HDMI
  • 4096×2160p@60
 VGA
  • 1920x1200@60RB
Maximum OutputHDBaseT
  • 4096×2160p@30
Power
Power Supply
  • 12V/3A
Power Consumption
  • 11.5W
Enclosure
Chassis Material
  • Aluminum
Chassis Color
  • White
Dimensions (W×H×D)
  • 147mm× 87.5mm× 41.5mm
Weight
  • 250g
Field Firmware Update
Interfaces
  • USB Flash Drive
Ordering Information
Model No.Product Description
CH-2538TXPLWPEUK
  • UHD HDMI/VGA over HDBaseT Wallplate Transmitter
CH-2527RXPL
  • HDR HDMI over HDBaseT ReceiverI with IR, RS- 232, PoH (PSE)
