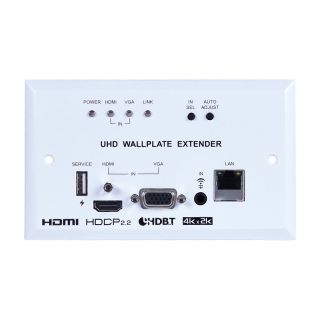

UHD HDMI/VGA over HDBaseT Wallplate Transmitter - Cypress CH-2538TXWPKD

UHD HDMI/VGA over HDBaseT Wallplate Transmitter - Cypress CH-2538TXWPKD

Artikelnummer: CH-2538TXWPKD
HAN: CH-2538TXWPKD
Kategorie: Extenders
Hersteller: Cypress Technology

This Transmitter is an HDMI/VGA switch with audio embedding and HDBaseT output. The wall plate is designed for use with UK twoga ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

This Transmitter is an HDMI/VGA switch with audio embedding and HDBaseT output. The wall plate is designed for use with UK twogang sized enclosures. This Transmitter can send high definition uncompressed audio/video along with Ethernet over a single cable up to a distance of 100 meters at 1080p@60Hz.

The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input, stereo audio may be embedded as well. To provide maximum compatibility with a wide range of display types, all sources will be automatically scaled to match the preferred resolution and timing of the connected display (as reported by the display’s EDID). Despite HDBaseT’s 10.2Gbps bandwidth limitation, even 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported by converting the signal to 4K@30Hz when necessary.

This unit also supports automatic input selection between the HDMI and VGA inputs, with hot plug detection, enabling hands-free operation. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver, which allows for greater flexibility in installations.

1 VGA input with 3.5mm mini-jack audio input
Supports VGA input resolutions up to WUXGA (RB)
Automatic conversion of 4K@50/60Hz HDMI sources to 4K@30Hz (4:4:4, 8-bit) for transmission over HDBaseT
Automatic scaling of sources to match the native resolution of the HDMI display based on EDID
HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (Ethernet bypass)
Simultaneous transmission of uncompressed video, audio and data over a single 100m Cat.5e/6/7 cable at 1080p and 70m at 4K
Automatic input selection with hot plug detection enabling handsfree operation
Unit may be powered locally or via 48V PoH (PD) from a compatible HDBaseT Receiver (PSE)
Wall plate is designed for UK two-gang sized enclosures
Controllable via front panel buttons and RS-232 (remote only)
Front panel LEDs indicate input selection, power and link status

Interfaces
Input Port	1×HDMI 1×VGA 1×3.5mm (Stereo Audio)
Output Port	1×Cat.5e/6/7
Pass-through Port	1×LAN (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Types	4K@60 8-bit YUV 4:4:4
Output Signal Types	4K@30 8-bit YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920×1080p
Maximum Output	Cat.5e/6/7	4096×2160p@30

Power
Power Supply	12V/3A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	26.84W

Enclosure
Chassis Material	Metal
Chassis Color	White
Dimensions (W×H×D)	147mm×87.5mm×41.5mm [Case Only] 147mm×87.5mm×46.6m [All Inclusive]
Weight	250g

Field Firmware Update
USB

ORDERING INFORMATION
Model No.	Product Description
CH-2538TXWPKD	UHD HDMI/VGA over HDBaseT Wallplate Transmitter
CH-2527RX	UHD HDMI over HDBaseT Receiver with PoH
