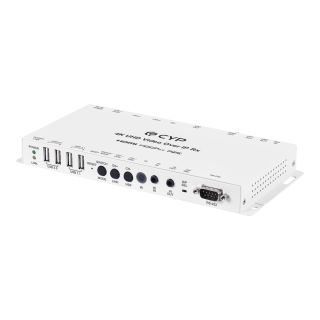

UHD HDMI/VGA over IP Receiver with KVM Extension - Cypress CH-U331RX-W

UHD HDMI/VGA over IP Receiver with KVM Extension - Cypress CH-U331RX-W

Artikelnummer: CH-U331RX-W
HAN: CH-U331RX-W
Kategorie: AV over IP
Hersteller: Cypress Technology

The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM throug ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.

CH-U331RX also allows you to send a single AV signal to a large number of Receivers within the same local network. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. This system is perfect for both residential and commercial installation environments.

The USB functionality allows the system to act like a remote USB hub which, when combined with the video extension feature, provides a fl exible remote KVM platform. Confi guration information is provided via the On-Screen Display (OSD) on the Receivers and both unit types can be controlled via front panel buttons, WebGUI, Telnet, and the AV over IP Master Controller.

Video, audio and control reception over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many, many-to-many) modes
Support video wall with 180° and 270° rotation
Video output can be scaled to a selected resolution, or left unscaled
The analog Line In on a connected Transmitter will send audio directly to this Receiver’s analog Line Out as well as being embedded into the HDMI output signal
The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
Includes 3 LAN ports, allowing multiple Receivers to be daisy chained without the need for an external Gigabit Ethernet switch
Supports USB keyboard, mouse and storage extension

Interfaces
Input Port	1 Analog Mono (3.5mm)
Output Port	1 HDMI (Type-A) 1 VGA (HD-15) 1 S/PDIF (TOSLINK) 1 Analog Stereo (3.5mm)
Bi-directional Port	3 GbE LAN (RJ-45)
Control I/O	1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (DB-9) 4 USB (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Type	4096x2160p@60 8bit YUV4:2:0
Output Signal Type	4096x2160p@30 8bit RGB

Resolutions
Maximum Input	LAN (Streaming)	4096×2160p@30
Maximum Output	HDMI	4096×2160p@30
	VGA	1920×1200p@60RB

Audio
Digital Formats	HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
	Line Out / Optical Out	LPCM (2 Channels), Bitstream
Line Level	Mic In	300 mVrms, S/N Ratio: > 80dB (1kHz with 0dBFS)
	Line Out	2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	5V/4A DC (Locking) or PoE
Power Consumption	17.68W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive]
Weight	666g

Field Firmware Update
Interfaces	WebGUI

Ordering Information
Model No.	Product Description
CH-U331RX	UHD+ HDMI/VGA over IP Receiver with KVM Extension
CH-U331TX	UHD+ HDMI/VGA over IP Transmitter with KVM Extension
CH-U331TR	UHD+ HDMI/DP UHD AV over IP Transceiver with USB/KVM Extension
CDPS-CS7	AV over IP Master Controlle
