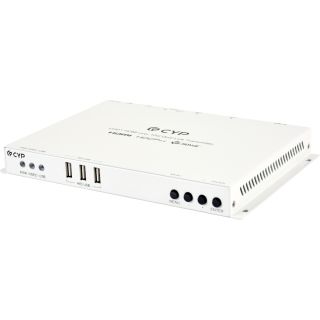

UHD+ HDMI over Dual Link Transmitter - Cypress AVIP-P6101T-B1F

UHD+ HDMI over Dual Link Transmitter - Cypress AVIP-P6101T-B1F

Artikelnummer: AVIP-P6101T-B1F
HAN: AVIP-P6101T-B1F
Kategorie: AV Over IP
Hersteller: Cypress Technology

The unit is flexible to operate with different link mode to fulfill the requirement of the environment. Dual link type transmitt ...

1.570,75 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

The unit is flexible to operate with different link mode to fulfill the requirement of the environment. Dual link type transmitter and receiver could be able to expand 4K@60 uncompressed signals simultaneously in both Transmitter and Receiver mode.With Bidirectional audio, it is able to achieve 2 way live chat with low latency. Seamless transition between two sources of same resolution in fast switch mode, with only 3 frames black when transit between 2 sources of different resolutions.Full suite of peripherals supported, including 1G Ethernet, RS232, and HID USB. Supporting all HDMI 2.0 formats including multichannel PCM, Dolby True HD and DTS HD master audio.

Uncompressed 4K@60p RGB in genlock mode
4K@30 endoscopy plus four sub 2k vital signs
Flexible multiview as side by side, PiP for endoscopy, four 2K@30 quadview
No crop, no stretch, and no change in aspect ratio in the scaled down video in multiview mode
Preview at PC side Note. Supports the use of an external control center or control software to provide expanded functionality
Dual link decoder operating in dual link mode can only operate in Genlock mode
Dual link decoder operating in single link mode has the same capabilities as a standard single link encoder
USB KVM function

Interfaces
Input Port	1 HDMI (Type A) 1 Analog(3.5mm)
Output Port	1 Analog(3.5mm)
Bi-directional Port	2 10GbE LAN (SFP+)
Control I/O	1 LAN (RJ-45) 1 USB (Mini-B) 3 USB(Type A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Types	4K@60 YUV 4:4:4
Output Signal Types	4K@60 YUV 4:4:4
Resolutions
Maximum Input	20G LAN	4096×2160p@60 YUV 4:4:4
Maximum Output	HDMI (Streaming)	4096×2160p@60 YUV 4:4:4

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
SFP+	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Line In	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)
Line Out	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	12V/3A DC (Locking)
Power Consumption	TDB

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	White
Dimensions (W×H×D)	231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×167mm [All Inclusive]
Weight	967g

Field Firmware Update
Interfaces	PC

ORDERING INFORMATION
Model No. Product Description
AVIP-P6101T-B1F	UHD+ HDMI over Dual Link Transmitter
AVIP-P6101R-B1F	UHD+ 10G Dual Link to HDMI Receiver
