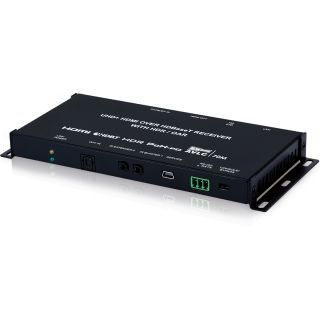

UHD+ HDMI over HDBaseT Receiver with HDR / OAR (4K@60 444 up to 70M) - Cypress CH-1529RXV

UHD+ HDMI over HDBaseT Receiver with HDR / OAR (4K@60 444 up to 70M) - Cypress CH-1529RXV

Artikelnummer: CH-1529RXV
HAN: CH-1529RXV
Kategorie: Extenders
Hersteller: Cypress Technology

This HDMI over single Cat.5e/6/7 Receiver is a great solution for extending HD audio and video as well as Ethernet and control v ...

418,87 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI over single Cat.5e/6/7 Receiver is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and control interfaces are provided, including IR, RS-232 and LAN connections. This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Transmitter. Beyond video, data, and control this unit also contains useful audio features. The Optical Audio Return (OAR) feature supports transmitting optical audio back to a compatible Transmitter for local playback. Rounding out the feature set is automatic TMDS re-clocking support. This Receiver (PD) is powered by 48V PoH (Power over HDBaseT) from a compatible Transmitter (PSE), allowing for flexibility within different installation scenarios.

HDMI with HDR, 3D & 4K@60Hz support
Supports Deep Color input and output up to 12-bit
Supports CEC bypass
Simultaneous reception of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p60 and 70m/230ft at 4K
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
Support for compatible AVLC (Adaptive Visually Lossless Compression) Transmitters, allowing for the output of HDMI sources that were originally beyond 10.2Gbps (340MHz) and up to 18Gbps (600MHz) with no loss of visual quality

Interfaces
Input Port	1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK)
Output Port	1×HDMI (Type-A)
Pass-through Port	1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×LAN (RJ45)
Pass-through/ Control Port	1×RS-232 (3-pin Terminal Block)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	1.4
Input Signal Types	4K@60 8bit YUV 4:4:4, HDR
Output Signal Type	4K@60 8bit YUV 4:4:4, HDR

Resolutions
Maximum Input	HDBaseT	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Power
Power Supply	48V/0.83A DC (US/EU standards, CE/ FCC/UL certified)
Power Consumption	7W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	163mm×16mm×78mm [Case Only] 183mm×16mm×81mm [All Inclusive]
Weight	200g

Field Firmware Update
Interface	USB Flash Drive

Ordering Information
Model No.	Product Description
CH-1529RXV	UHD+ HDMI over HDBaseT Receiver with HDR / OAR
CH-1529TXV	UHD+ HDMI over HDBaseT Transmitter with HDR / OAR
