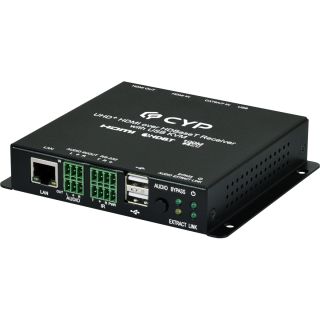

UHD+ HDMI over HDBaseT Receiver with USB KVM (4K@60 444 up to 100M) - Cypress VEX-E4501R

UHD+ HDMI over HDBaseT Receiver with USB KVM (4K@60 444 up to 100M) - Cypress VEX-E4501R

Artikelnummer: VEX-E4501R
HAN: VEX-E4501R
Kategorie: Extenders
Hersteller: Cypress Technology

This Receiver is new generation HDBaseT 3.0 technology, it is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, ...

508,62 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Receiver is new generation HDBaseT 3.0 technology, it is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as Ethernet and control via a single run of Cat.6a/7 cable over distances of up to 100 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and 1000BaseT Ethernet. This Receiver is ideal for any scenario which needs uncompressed video like medical equipment, conference room, education and anything you want to extend.

HDMI input and output with 3D & 4K video support (18Gbps)
1 HDMI output (Functions as local monitor output)
HDBaseT 3.0 compatible, Backward compatibility with HDBaseT 2.0/1.0 product
Supports HDBaseT features: HD video and audio, individual 1000BaseT and 100BaseT Ethernet ports, POH and control (bi-directional IR/RS-232/ USB pass-through)
Supports analog audio and optical audio pass-through.
Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.

Interfaces
Input Port	1×HDMI (Type-A)
Output Port	1×HDMI (Type-A) 1xHDBT(RJ-45)
Pass-through Port	1x Stereo Audio input and output (3-pin2 Term. Block) 1×IR In/Out and RS-232 (4-pin2 Term. Block) 2×USB 2.0 (Type A) 1xLAN (RJ-45)
Pass-through/Control Port	1×USB 2.0 (Micro USB)

Video
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
Input Signal Type	HDMI 4K@60 8bit RGB 4:4:4 HDBT 4K@60 8bit RGB 4:4:4
Output Signal Type	HDMI 4K@60 8bit RGB 4:4:4 HDBT 4K@60 8bit RGB 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60
	HDBT	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60
	HDBT	4096×2160p@60

Audio
HDMI	LPCM (8 Channels), Bitstream, HD Bitstream
HDBT	LPCM (8 Channels), Bitstream, HD Bitstream
Analog Out	2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Consumption	14W

Enclosure
Chassis Material	Metal(Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×25mm×112.5mm [All Inclusive]
Weight	390 g

Field Firmware Update
USB stick Update

ORDERING INFORMATION
Model No.	Product Description
VEX-E4501T	UHD+ HDMI over HDBaseT Transmitter with USB KVM
VEX-E4501R	UHD+ HDMI over HDBaseT Receiver with USB KVM
VEX-E4701TR	UHD+ HDMI over HDBaseT Transceiver with USB KVM
