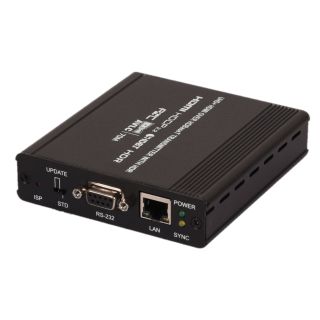

UHD+ HDMI over HDBaseT Transmitter with HDR (4K@60 444 up to 100M) - Cypress CH-527TXVBD

UHD+ HDMI over HDBaseT Transmitter with HDR (4K@60 444 up to 100M) - Cypress CH-527TXVBD

Artikelnummer: CH-527TXVBD
HAN: CH-527TXVBD
Kategorie: Extenders
Hersteller: Cypress Technology

This HDMI over HDBaseT Transmitter is a great solution for extending UHD video and audio as well as Ethernet and control via a s ...

437,35 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI over HDBaseT Transmitter is a great solution for extending UHD video and audio as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances up to 100 meters. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. In addition, despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. Multiple data and control interfaces are also able to be extended, including IR, RS-232, and LAN connections. This unit supports bi-directional 24V PoC (Power over Cable) allowing the system to be completely powered by, or provide power to, compatible connected Receiver, allowing for greater flexibility within different installation scenarios.

HDMI with HDR, 3D & 4K@60Hz support
Supports Deep Color input and output up to 12-bit
Supports CEC bypass
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 24V PoC and Control (bi-directional IR/RS-232 pass-through)
HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7
Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality
Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Bi-directional 24V PoC allows the unit to be powered by, or provide power to, a compatible connected Receiver

Interfaces
Input Port	1 x HDMI(Type-A)
Output Port	1×HDBaseT (RJ-45)
Pass-through Ports	1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (DE-9) 1×LAN (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP 1.4
Input Signal Types	4K@60 8-bit YUV 4:4:4,HDR 12
Output Signal Type	4K@60 8-bit YUV 4:4:4,HDR

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDBaseT	4096×2160p@60

Power
Power Supply	24V/1.25A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	16.3W (Tx+Rx)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	102mm×25mm×107.5mm [Case Only] 102mm×25mm×115mm [All Inclusive]
Weight	252g

Field Firmware Update
Interface	RS232

Ordering Information
Model No.	Product Description
CH-527TXVBD	UHD+ HDMI over HDBaseT Transmitter with HDR
CH-527RXVBD	UHD+ HDMI over HDBaseT Receiver with HDR
