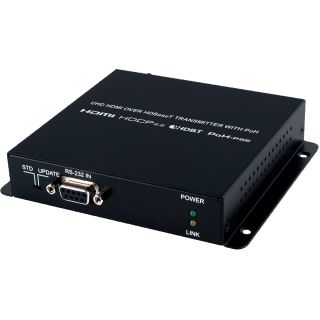

UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 35M) - Cypress CH-1527TXPL

UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 35M) - Cypress CH-1527TXPL

Artikelnummer: CYP-CH-1527TXPL
HAN: CH-1527TXPL
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of C ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 60 meter. It has the added benefit of control through the builtin RS-232 and IR ports. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater flexibility in installations.

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
RS-232 with baud rate up to 115200/sec
Supports wide range of IR frequency from 30~50kHzHDMI with 3D, 4K2K support, HDMI & DVI Compliant
Supports CEC bypass
Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60m
4Play™ convergence: HDMI, PoH & Control (IR & RS-2232)
Supports resolution up to 4K2K@50/60 & YUV_420 and
Supports standard 48V from Transmitter (PSE) to Receiver (PD)

Interfaces
Input Port	1 x HDMI(Type-A) 1 x IR Extender(3.5mm) 1 x RS-232(DE-9)
Output Port	1 x HDBaseT (RJ-45) 1 x IR Blaster(3.5mm)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
Maximum Output	HDBaseT6/7	4096×2160p@60 YUV 4:2:0

Power
Power Supply	48 V/0.83 A DC (US/EU Standards, CE/FCC/ UL certified)
Power Consumption	13.5w (Max)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	108mm x 25mm x 108mm /Jacks Excluded 108mm x 29mm x 116mm /JacksIncluded
Weight	370g

Field Firmware Update
Interface	RS232

Ordering Information
Model No.	Product Description
CH-1527TXPL	UHD HDMI over HDBaseT Transmitter with PoH
CH-1527RXPL	UHD HDMI over HDBaseT Receiver with PoH
