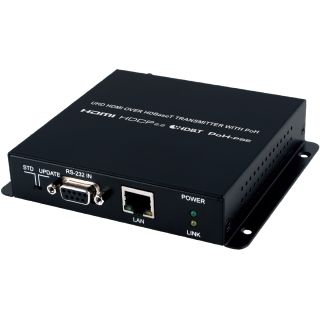

UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 70M) - Cypress CH-1527TX

UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 70M) - Cypress CH-1527TX

Artikelnummer: CH-1527TX
HAN: CH-1527TX
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/ video and IP data over a single run of CAT5e/6/7 cable a ...

323,83 €

exkl. 19% USt. , zzgl.

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/ video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Transmitter (PSE) can provide power to the Receiver(PD) allowing a greater flexibility in installations.

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
RS-232 with baud rate up to 115200/sec
Supports wide range of IR frequency from 30~50kHz
HDMI with 3D, 4K2K support, HDMI & DVI Compliant
Supports CEC bypass
Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6/7 cable
5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232)
Supports resolution up to 4K2K@50/60 & YUV_420
Supports standard 48V from Transmitter (PSE) to Receiver (PD)

Interfaces
Input Port	1 x HDMI(Type-A) 1 x IR Extender(3.5mm) 1 x RS-232(DE-9) 1 x LAN(RJ-45)
Output Port	1x CAT5e/6/7(RJ-45) 1 x IR Blaster(3.5mm)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP 2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:2:0
Maximum Output	HDBaseT6/7	4096x2160p@60 YUV 4:2:0

Power
Power Supply	48 V/0.83 A DC (US/EU Standards, CE/FCC/UL certifi ed)
Power Consumption	13.5w (Include Receiver)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	108mm (W) x 25mm (H) x 108mm (D) 108mm (W) x 29mm (H) x 116mm (D)
Weight	370g

Field Firmware Update
Interface	PC Update, WebGUI

Ordering Information
Model No.	Product Description
CH-1527TX	UHD HDMI over HDBaseT Transmitter with PoH
CH-1527RX	UHD HDMI over HDBaseT Receiver with PoH
