This HDMI to Dual HDMI Scaler with Audio De-Embedding & Test Patterns is
designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD
(18Gbps) signals into 1080p with synchronized digital and analog audio output.
A friendly and simple interface design allows the user to control the unit while
viewing the OSD directly on the HDMI output. The input signal can be output
to both HDMI outputs simultaneously with a different resolution on each or the
unit can generate a test pattern at a preferred video resolution for easy on-site
display testing and validation. This UHD Scaler is the best tool to use with your
HD and UHD signals.
- HDMI signal bypass on both outputs or upscales 1080p signals to 4K on
output B and downscales 4K signals to 1080p on output A
- 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion
- Integrated EDID management
- Test pattern generation at selected resolutions for on-site display testing
- Supports High-Dynamic-Range (HDR) sources
- Supports data rates up to 18Gbps (600MHz) and Deep Color up to
1080p/16-bit
- Supports pass-through of HD audio formats including LPCM2.0/5.1/7.1,
Bitstream, and HD Bitstream
- OSD with instant I/O resolution display
- Supports the Apple source compatibility mode option
| Interfaces | |
|---|
| Input Port | |
| Output Port | - 2 HDMI
- 2 RCA (Stereo Audio)
|
| Video | |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Types | |
| Output Signal Type | |
| Resolutions | | |
|---|
| Maximum Input | HDMI | |
| Maximum Output | HDMI | |
| Power | |
|---|
| Power Supply | - 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
|
| Power Consumption | |
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 231.5mm×25mm×108mm [Case Only]
- 231.5mm×25mm×117mm [All Inclusive]
|
| Weight | |
| Field Firmware Update | |
|---|
| Interface | USB |
| Ordering Information | |
|---|
| Model No. | Product Description |

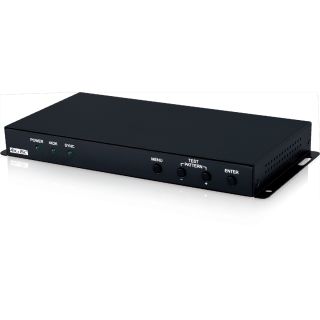

| CPLUS-V2PE | - UHD+ HDMI to Dual HDMI Scaler with Audio De-Embedding & Test Patterns
|
