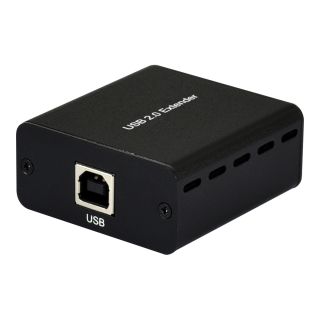

USB 2.0 Extender - Cypress CH-710TX

Artikelnummer: CH-710TX
HAN: CH-710TX
Kategorie: Extenders
Hersteller: Cypress Technology

This compact and low cost USB 2.0 Extender set is designed to expand the usability and flexibility of the most prevalent interfa ...

95,04 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This compact and low cost USB 2.0 Extender set is designed to expand the usability and flexibility of the most prevalent interface standard used nowadays, USB. This extender provides a simple and efficient way to extend the USB 2.0 connection from a typical host, such as a PC or laptop, to up to 4 standard USB devices located as far as 50 meters away. It extends the high quality data stream over single Cat.5e (or better) cable, with full support for the entire range of USB 2.0 compliant products and data formats. The receiver can supply up to 2A of total power (500mA per port) to devices connected to the 4 USB Type-A ports.

Convenient point-to-point USB 2.0 extension with 4 port hub
1 host port on the transmitter and 4 device ports on the receiver
Supports standard USB 2.0 devices, such as a mouse and keyboard, as well as those requiring isochronous transfers such as webcams and portable storage
Supplies up to 2A of power to the 4 USB ports (500mA per port)
Low RF emission and robust noise immunity
Simple plug-and-play operation, no drivers required

USB 2.0 Bandwidth	480Mbps
Bi-directional Port	1×USB 2.0 (Type-B)
Output Port	1×Cat.5e/6/7 (RJ-45)
Power Supply	Provided via Cat.5e/6/7
ESD Protection (HBM)	±8kV (Air Discharge) ±4kV (Contact Discharge)
Dimensions (W×H×D)	50mm×25mm×52mm [Case Only]
Weight	60g
Chassis Material	Metal (Steel)
Chassis Color	Black
Operating Temperature	0˚C – 40˚C/32˚F – 104˚F
Storage Temperature	-20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity	20 – 90% RH (Non-condensing)
Power Consumption	10W
