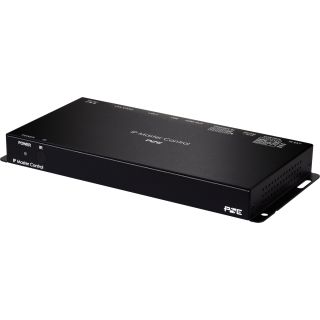

Universal Device Controller - Cypress CDPS-CS9

Universal Device Controller - Cypress CDPS-CS9

Artikelnummer: CDPS-CS9
HAN: CDPS-CS9
Kategorie: Master
Hersteller: Cypress Technology

This controller is a powerful and flexible solution for controlling all active units within same network. The user only needs to ...

769,98 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung Frage zum Artikel

This controller is a powerful and flexible solution for controlling all active units within same network. The user only needs to install this unit into the same local network to easily define and configure channel routing selections using the WebGUI. Not only could about to check all the units status that under controller’s control, it also able to define and switch routes, allowing for easy control over multiple video zones. Additionally, this unit supports script editing to help installer to build up suitable scenario, preset and scheduling actions by controller itself. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.

Enables the management and configuration of multiple compatible devices.
WebGUI provides dashboard present for controlled devices status.
Discovery, connected and controlled all devices at same network.
HDMI output displays the WebGUI and system status
Supports the use of a USB mouse and keyboard to locally control the WebGUI (Optional)
Can be powered directly by Power over Ethernet (PoE) when connected to an Ethernet switch that follows the 802.3af PoE standard (Optional)
Trigger Control Keypad support for easy, single-button, preset activation (Optional)

Interfaces
Output Port	1 HDMI (Type A)
Control I/O	2 LAN (RJ-45) 1 IR Extender (3.5mm) 1 RS-232 (3-pin terminal block) 8 Trigger(10-pin terminal block) 1 USB (Type A)
Reserved Port	1 RS-232 (5-pin Terminal Block)

Video
HDMI Compliance	HDMI 1.4
Output Signal Type	1920×1080p@60

Resolutions
Maximum Output	HDMI	1920×1080p@60

Power
Power Supply	5V/2.6A DC (Locking)
Power Consumption	2.99W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×117mm [All Inclusive]
Weight	916g

Field Firmware Update
Interface	USB Flash Drive, WebGUI

Ordering Information
Model No.	Product Description
CDPS-CS9	CDPS-CS9 Universe Device Controller
