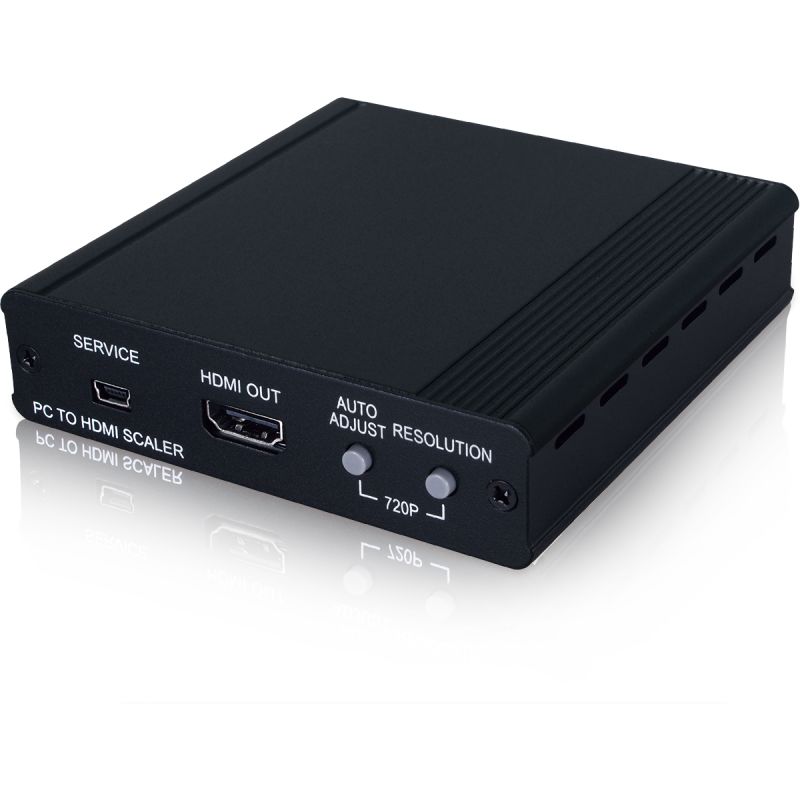

The VGA to HDMI Video Scaler Box is designed to upscale analog video from PC input source to digital HDMI output of wide-range HD/PC resolutions up to 1080p/WUXGA. Besides video scaling, the device can convert analog stereo audio input to digital format and embed it to HDMI output as 2-CH LPCM. This unit has a comprehensive resolution button that allows user to select a variety of output resolutions and adjust for best picture quality.
- Scales any PC resolutions to HD (480i~1080p)/PC (VGA~WUXGA) resolutions
- Automatically detect the factory setting of the connected display and output the corresponding resolutions and refresh rate, when the NATIVE output is selected
- Support high resolution output PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA. SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
- Embeds stereo analog input with PC video to HDMI output
| Interfaces | |
|---|

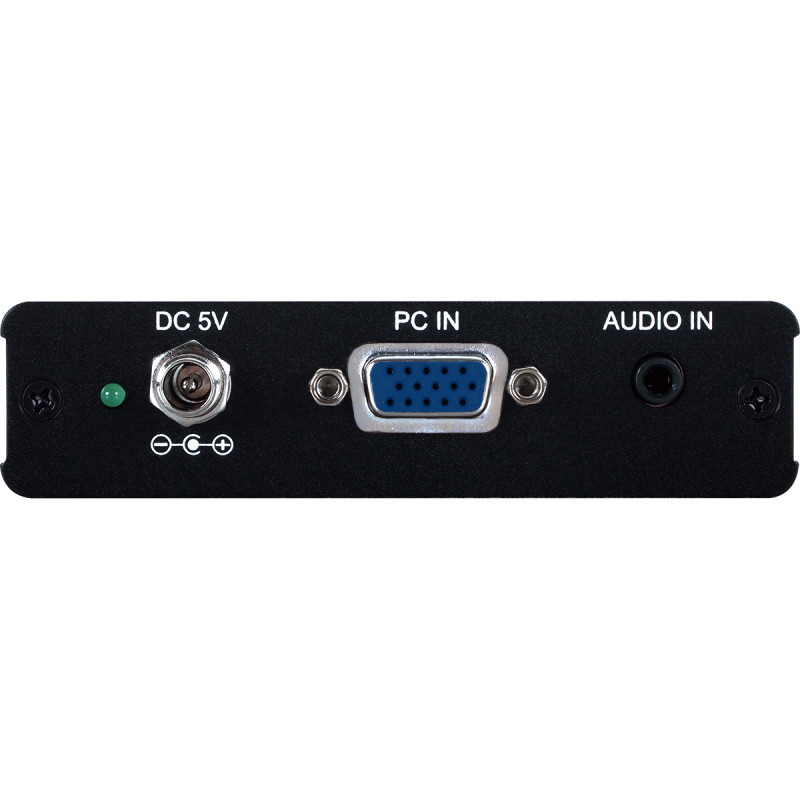

| Input Port | - 1 VGA
- 1 Analog stereo(3.5mm)
|

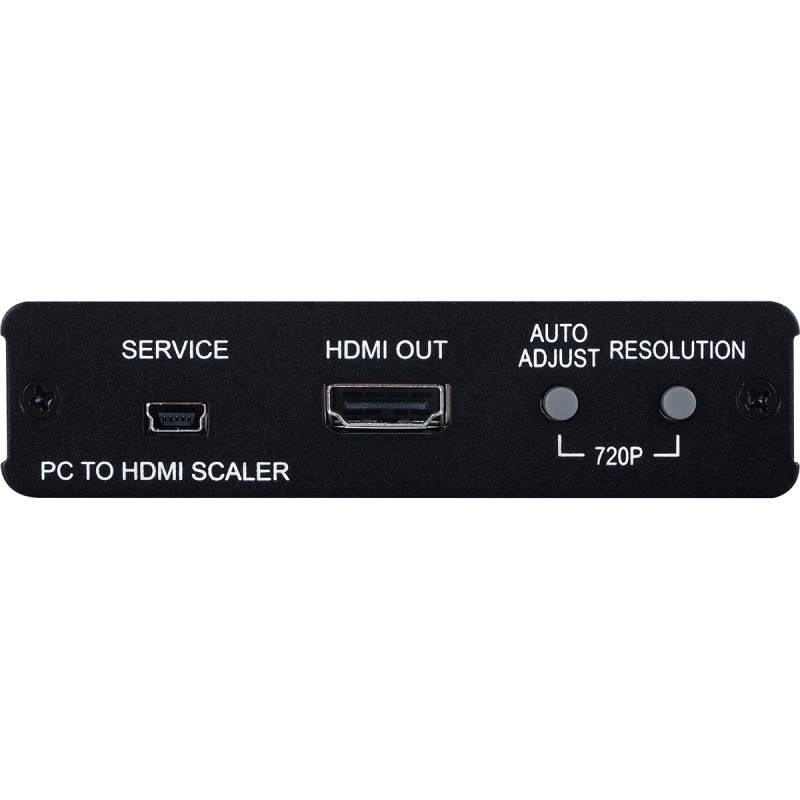

| Output Port | |
| Video | |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Types | |
| |
| Resolutions | | |
|---|
| Maximum Input | VGA | |
| Maximum Output | HDMI | |
| Power | |
|---|
| Power Supply | |
| Power Consumption | |
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 102mm x 25mm x 102mm [Case Only]
- 102mm x 25mm x 111mm [All Inclusive]
|
| Weight | |
| Field Firmware Update | |
|---|
| Interface | |
| Ordering Information | |
|---|
| Model No. | Product Description |
| CP-304 | |
