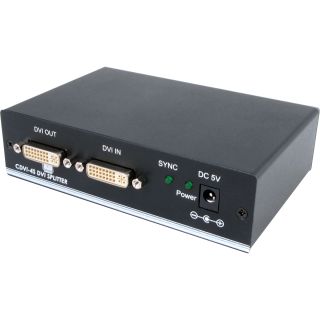

1 by 4 DVI Splitter - Cypress CDVI-4S

Artikelnummer: CDVI-4S
HAN: CDVI-4S
Kategorie: Splitters
Hersteller: Cypress Technology

The DVI Splitter series are high performance, HDCP compliant DVI distribution amplifiers. It allows one DVI signal source to be ...

242,87 €

exkl. 19% USt. , zzgl.

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The DVI Splitter series are high performance, HDCP compliant DVI distribution amplifiers. It allows one DVI signal source to be split to two, four or eight identical buffered outputs for connecting to up to eight DVI displays simultaneously. These models can be used to transfer HDMI signal by using HDMI to DVI adaptor or cable. Each of the buffered outputs can be run up to 15 meters and can be cascaded.

Compatible with HDMI signal (with adaptor cable)
Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480p to 1080p
Can be cascaded up to 3 layers
The device will read and record the EDID of output 1 and then send it to the source device

Interfaces
Input Port	1 DVI
Output Port	4 DVI

Video
HDMI Compliance	HDMI 1.3 (DVI 1.0)
HDCP Compliance	HDCP 1.4
Input Signal Types	1080p60 12-bit
Output Signal Type	41080p60 12-bit

Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:4:4
	DP	4096x2160p@60 YUV 4:4:4
Maximum Output	10G LAN (Streaming)	4096x2160p@60 YUV 4:4:4
	HDMI	4096x2160p@60 YUV 4:4:4

Power
Power Supply	5V /2.6A DC
Power Consumption	6W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	102 mm × 38 mm × 141 mm
Weight	550g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CDVI-4S	1 by 4 DVI Splitter
