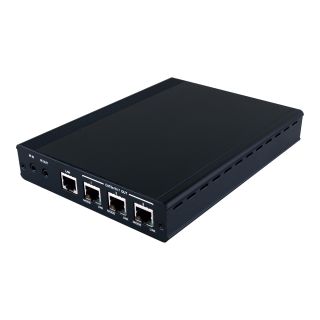

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to HDBaseT to HDMI receivers to extend the operating distance up to 100 meters.Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.
- HDMI with 4K×2K resolution and 3D support
- Simultaneous HDMI and CAT5e/6/7 outputs
- Supports data rate from 300 Mbps up to 3 Gbps
- Supports up to 4096x2160@60Hz YUV 4:2:0 8bit
- Supports transmission of High Definition audio: LPCM 7.1CH, Bitstream, HD Bitstream (32 kHz~192 kHz sample rate)
- Supports distances up to 100 meters over CAT5e/6/7 cables
- Supports Ethernet network rates up to 100 Mbps
- Supports selection of Standard or TV EDID settings
- Supports PoC with compatible receiver units
- Supports control of devices via 2-way IR
- 3D signal display is dependent on the TV/Display?s EDID settings
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Pass-through Port |
|
| Service Port |
|
| Video | |
|---|---|
| HDMI Compliance |
|
| HDCP Compliance |
|
| Input Signal Types |
|
| Output Saignal Type |
|
| Resolutions | ||
|---|---|---|
| Maximum Input | HDMI |
|
| Maximum Output | HDMI |
|
| HDBaseT |
|
| Audio | |
|---|---|
| HDMI |
|
| HDBase T |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update | |
|---|---|
| Interface |
|
