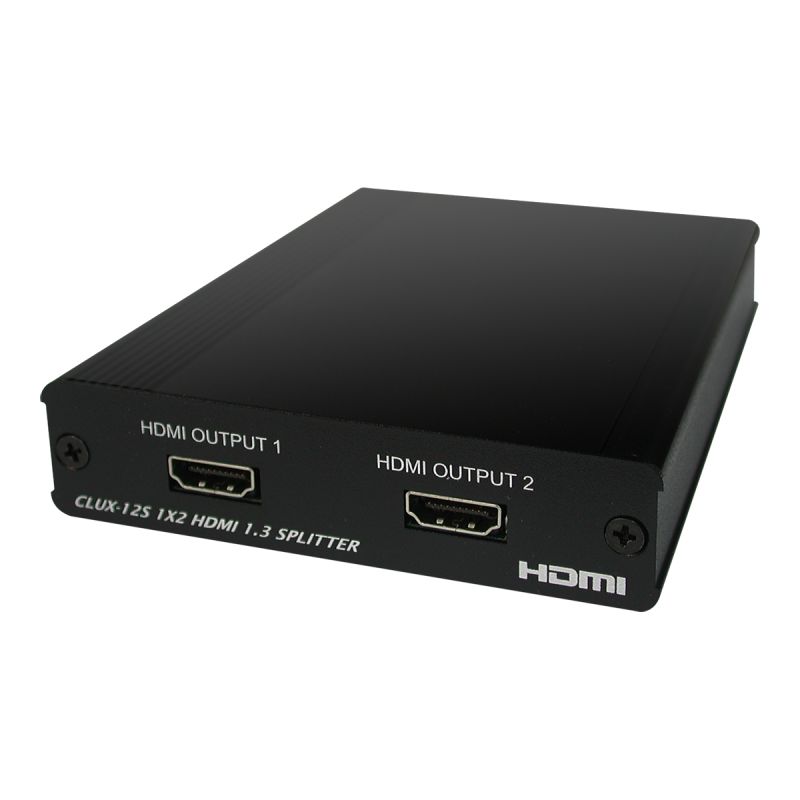

1×2 HDMI Splitter - Cypress CLUX-12S
The HDMI Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible with HDMI specifications, a cutting-edge technology which defines the supports to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). Besides splitting and distributing, the HDMI DA series also does signal amplification and equalization, so as to provide high performance I/O of audio and video.
- HDMI 1.3, HDCP1.1 and DVI1.0 compliant
- Deep Color video up to 12-bit, 1080p@24/60 Hz
- One HDMI source to connect up to two HDMI displays simultaneously
- HDCP keysets allows each output to work independently when connecting to an HDMI display
- Splits a HDMI source up to two outputs without signal loss
- Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate)
- Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p
- HDMI cable distance test with 1080p/8-bit resolution, the Input/Output source can run up to 20/15 meters
- HDMI cable distance test with 1080p/12-bit the Input/Output source can run up to 15/10 meters
- Supports EDID functionality
- Supports CEC bypass
| Frequency Bandwidth | 2.25Gbps (Single Link) |

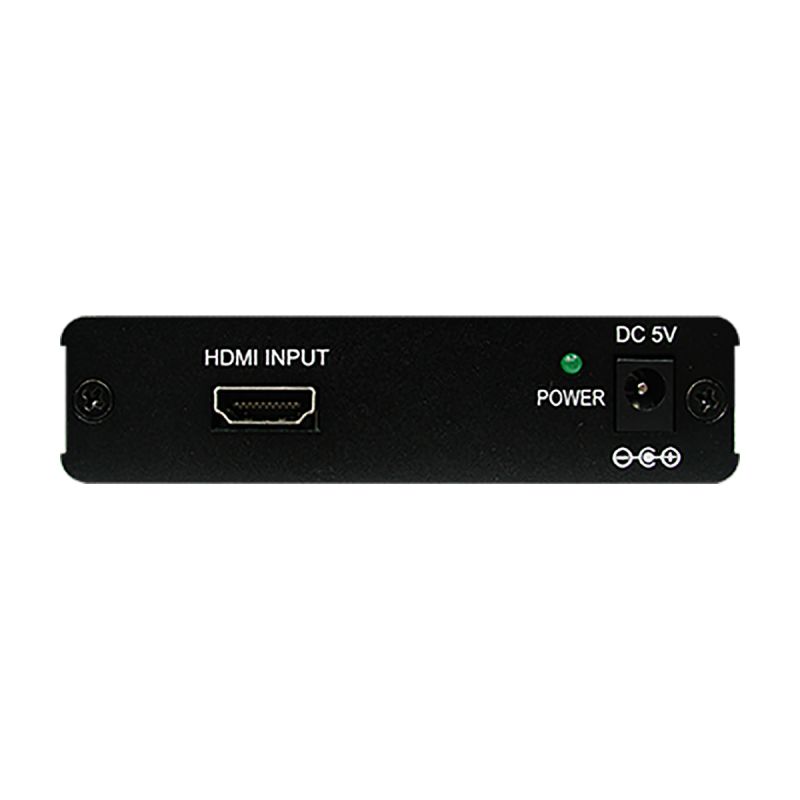

| Input Port | 1x HDMI female port (Type A) |

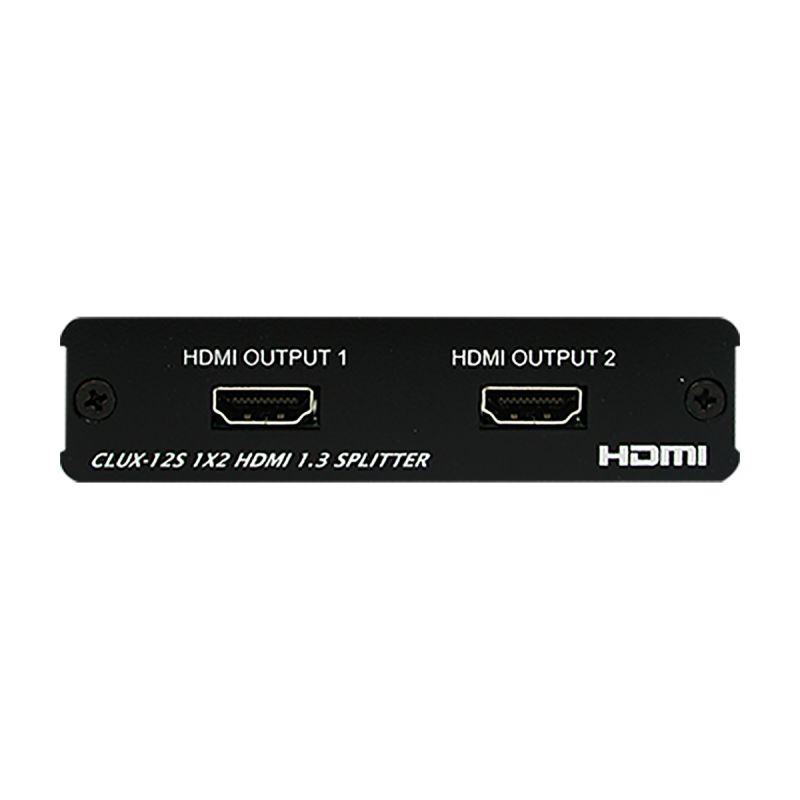

| Output Por | 2x HDMI female ports (Type A) |
| Power Supply | 5VDC/2.6A (US/EU standards, CE/FCC/UL |
| Dimensions (mm) | 100(W) x 147(D) x 25(H) |
| Weight(g) | 300 |
| Chassis Material | Aluminum |
| Silkscreen Color | Black |
| Operating Temperature | 0°C ~ 40°C |
