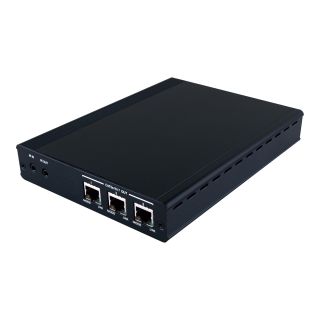

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single
HDMI input and 2-way IR control to up to three HDBaseT outputs and includes
a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full
HD, 4Kx2K timing, 3D and multi-channel digital audio formats. The HDMI
bypass output can be connected to an HDMI display or cascaded to another
splitter. The three HDBaseT outputs can be connected to CAT5e/6/7 to HDMI
Receivers to extend the operating distance up to 70 meters.
- Simultaneous HDMI and HDBaseT outputs
- Supports data rate from 250Mbps up to 3Gbps
- Supports up to 4096x2160@60Hz YUV 4:2:0
- Supports LPCM 7.1CH, Bitstream, HD Bistream transmission (32~192kHz
sample rate)
- Supports distances up to 70 meters through CAT5e/6/7 cables
- Supports selection of Standard or TV EDID settings
? Supports Bidirectional IR control
- The 3D signal display follow by display TV?s EDID
| Interfaces | |
|---|
| Input Port | |
| Output Port | - 1 HDMI (Type-A)
- 3 HDBaseT (RJ-45)
|
| Pass-through Port | - 1 IR IN (3.5mm)
- 1 IR OUT (3.5mm)
|
| Service Port | |
| Video | |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Types | - 4096x2160@60Hz YUV 4:2:0 8bit
|
| Output Saignal Type | - 4096x2160@60Hz YUV 4:2:0 8bit
|
| Resolutions | | |
|---|
| Maximum Input | HDMI | |
| Maximum Output | HDMI | |
| | HDBaseT | |
| Audio | |
|---|
| HDMI | - LPCM(8CH), Bitstream, HD Bitstream
|
| HDBase T | - LPCM(8CH), Bitstream, HD Bitstream
|
| Power | |
|---|
| Power Supply | |
| Power Consumption | |
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 145 mm x 30 mm x 190 mm [Case Only]
- 145 mm x 30 mm x 199 mm [All Inclusive]
|
| Weight | |
| Field Firmware Update | |
|---|
| Interface | |
| Ordering Information | |
|---|
| Model No. | Product Description |
| CHDBT-1H3CL | - 1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter
|
| CH-506RXL | - HDMI/IR/RS-232 over Single CAT5e/CAT6 Extender
|
| CH-513RXL | |
| CH-514RXL | |
