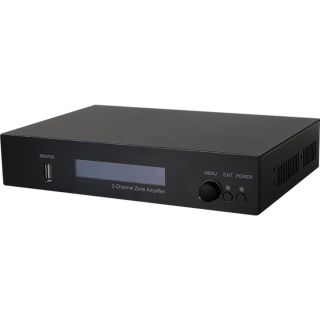

2-Channel Zone Amplifier - Cypress DCT-23A
The 2-Channel Zone Amplifier accepts analog and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital. As well as speaker outputs, it boasts a CAT5e/6/7 output for wider systems integration. Suitable for use at musical events, sound presentations and sound amplification. With audio sampling rate support up to 96kHz and I/O data rate supports up to 24-bit, it provides high quality sound reproduction and sound amplification up to -80dB. The system also support control via RS-232 and IP control (Telnet/WebGUI).
- Supports Digital to Analog audio Conversion (DAC) and Analog to
- Digital audio Conversion(ADC)
- Supports input sampling rate up to 96kHz and output at 48kHz
- Supports 2 Passive speaker with 4? ~ 8? each
- Speaker each output channel supports 45W/4?
- Hi-Efficient 2 x 45W class D amplify > 80% efficient
- Synchronous output sound on both digital and analog
- Supports distances up to 300 meters through CAT5e/6/7 cables
- Supports RS-232, IR remote and on-panel controls
- Sound supports up to -80dB with volume up moderation at power ON
Input ports | 1 x Optical, 1 x Coaxial, 1 x 3.5Ø Line in, 1 x R/L RCA, 1 x D-Sub 9pin (RS-232), 1 x RJ-45 (LAN), 1 x Service, 1 x IR, 1 x AUDIO-CAT |
Output ports | 1 x Power Rated Output Amplifer L/R |
Digital Audio | LPCM 2CH |
Audio Sampling Rate | Up to 96kHz |
Stereo Input/Output Level | 2 Vrms ± 0.2 |
ESD Protection | Human body model: ±8kV (air-gap discharge) |
Power Supply | 24V/ 2.7A DC (US/EU standards, CE/ FCC/UL certified) |
Dimensions | 215mm(W) x 144mm(D) x 42mm(H)/ Jacks Excluded 215mm(W) x 174mm(D) x 47mm(H)/ Jacks Included |
Weight | 1060 g |
Chassis Material | Aluminum |
Silkscreen Color | Black |
Operating Temperature | Operating from 0°C ~ 40°C |
Storage Temperature | -20?C ~ 60?C / -4 ?F ~ 140 ?F |
Relative Humidity | 20 ~ 90% RH (non-condensing) |
Power Consumption | 52W |
