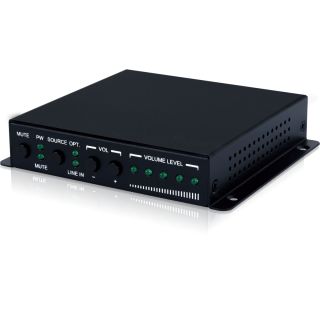

Digital/Analog Stereo Amplifier - Cypress DCT-42

Digital/Analog Stereo Amplifier - Cypress DCT-42

Artikelnummer: DCT-42
HAN: DCT-42
Kategorie: Amplifier
Hersteller: Cypress Technology

This Amplifier is a compact, high performance, Class-D amplifier which features both digital and analog inputs. Volume and input ...

246,39 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Amplifier is a compact, high performance, Class-D amplifier which features both digital and analog inputs. Volume and input selection can be controlled via front panel buttons or RS-232. LED indicators provide selection and feature information. This unit is designed for both the commercial and residential user who needs to output a high quality source to local analog speakers.

Compact and cost-effective amplifier design
High performance and efficient Class-D amplifier
Selectable analog and digital audio inputs
Volume control with mute
Simple control via front panel buttons and RS-232

Interfaces
Input Port	1 S/PDIF 1 Analog Stereo (3.5mm)
Output Port	1 Balanced Analog Stereo (2 2-pin Terminal Block)

Audio
ESD Protection	Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Line Level	Frequency Response: < ±0.5dB (20Hz to 20kHz) THD: < 0.005% (20Hz to 20kHz) S/N Ratio: > 95dB (1kHz with 0dBFS) Crosstalk: < −80dB (10kHz, Vin=0dBFS)
Speaker Level	Output Power: 20W (Condition) THD: < 0.02% (1kHz at Full Power) S/N Ratio: > 95dB (1kHz at Full Load)

Power
Power Supply	24V/2.7A DC
Power Consumption	42W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×25mm×110mm [All Inclusive]
Weight	380g

Ordering Information
Model No.	Product Description
DCT-42	Digital/Analog Stereo Amplifier
