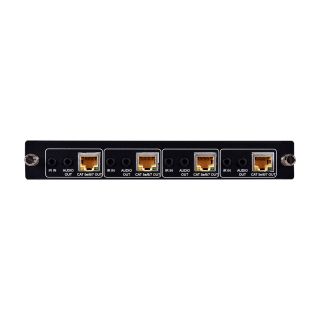

4-Port HDBT Output Card - Cypress COUT-4C
This 4-port HDBT output Card provides 4 independent high-bandwidth HDBT
outputs, paired with IR input and analog stereo outputs. Any available input on
the connected modular matrix can be freely routed to each output of the card .
- 4 HDBT output ports paired with IR output and analog stereo output ports
- Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color
- Supports 12-bit Deep Color up to 1080p@60Hz
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- This card?s features are controlled by the modular matrix
Interfaces | |
Input Port | 4 HDBT (RJ-45) 4 Optical audio |
Control I/O | 4 IR Extender (3.5mm) |
Video | ||
HDBT Compliance | HDBT 4K@30 | |
HDCP Compliance | 2.x | |
Input Signal Type | 4096x2160p@60 8bit YUV 4:2:0 | |
Resolutions | ||
Maximum Input | HDBT | 4096×2160p@60 YUV 4:2:0 |
Audio | |
HDBT | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
Optical In | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
Enclosure | |
Chassis Material | Metal (Steel) |
Chassis Color | Black |
Dimensions (W×H×D) | 187.4mm×29.1mm×344.9mm [Case Only] 197.5mm×29.1mm×364.6mm [All Inclusive] |
Weight | 458g |
ORDERING INFORMATION | |
Model No. | Product Description |
COUT-4C | 4-Port HDBT Output Card |
CH-1605RX | UHD HDMI over HDBaseT Receiver with HDR/ARC |
