Dante®
(digital audio network through Ethernet) is a powerful technology that

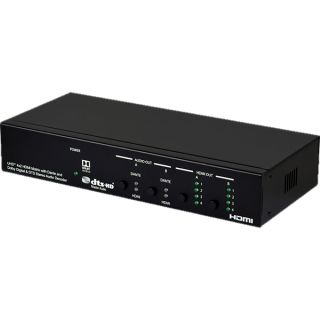

allows many audio channels to be sent and received through Ethernet. CPLUSV4H2HP-DTDA integrates Dante® technology, 4×2 MATRIX and DSP audio
processor allows the user to route four 18Gbps HDMI input signals to any of
two 18Gbps HDMI and Dante®
digital audio outputs. Dante digital audio output
enables audio transport of up to two stereo audio signals over a network
using standard Internet protocols. It also supports AES67 and Audinate Dante®
Controller. Ethernet is used for remote control while a front panel with buttons
optimized for use in challenging environments, allows full local control of all
features. The DSP processing technology are with new adaptive feedback and
noise cancellation functions.
The integration of Dante®
audio out facilitates system expansion when paired
with many of Cypress?s Dante-enabled audio processing products.
- Enabled HDMI de-embedded/embedded designed to bridge 2-channel
PCM HDMI audio to/from a Dante®
audio network.
- Balance Audio out can be switch between HDMI De-embedded audio or
Dante-In source
- Dante®
audio networking utilizes standard IP networks to transmit
high-quality, uncompressed audio with near-zero latencay
- Supports PCM 2Ch, Dolby Digital, Dolby Digital Plus, DTS, DTS-HD,
DTS-HD MA formats/Decode (Downmix to 2 Ch)
- Non-compress audio performance
- Sample-accurate time alignment between networked devices
- Real-time latency statistics, Clock status statistics and signal presence
exposed to network
Interfaces | |
---|
Input Port | |
Output Port | - 2 HDMI (Type-A)
- 2 Stereo Analog Out (5-pin Terminal Block)
|
Control I/O | - 1 RS-232 (3-pin Terminal Block)
- 1 LAN (RJ-45)
|
Service Port | |
Ethernet Port | |
Video | |
---|
HDMI Compliance | |
HDCP Compliance | |
Input Signal Types | - 4096x2160@60 8bit YUV 4:4:4
|
Output Signal Type | - 4096x2160@60 8bit YUV 4:4:4
|
Resolutions | | |
---|
Maximum Input | HDMI | |
Maximum Output | HDMI | |
Audio | | |
---|
Analog Out | DAC | - Max Audio Level: 4.2Vrms
- Impedance: 5kOhm
- Type: Balanced S/N
- Ratio: > 70dB (1kHz with 0dBFS)
|
Power | |
---|
Power Supply | |
Power Consumption | |
Enclosure | |
---|
Chassis Material | |
Chassis Color | |
Dimensions (W×H×D) | - 240mm× 43mm× 104mm [Case Only]
- 240mm× 48mm× 112mm [All Inclusive]
|
Weight | |
Ordering Information | |
---|
Model No. | Product Description |
CPLUS-V4H2HP-DTDA | - UHD+ 4x2 HDMI Matrix with Dante and Dolby Digital & DTS Stereo Audio Decoder
|
AIP-D4101 | - 4 Balance In, Analog Audio to Dante
|
AIP-D1401 | - 4 Balance Out, Dante to Analog Audio
|
