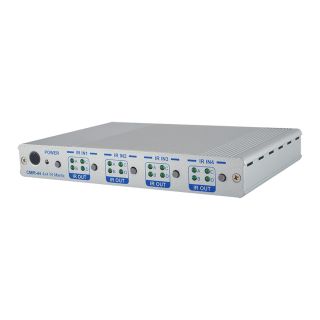

The Infrared 4 by 4 Matrix is designed to control your source devices from beside your display/receiver. Using the original remote, you can control DVD/ Blu-ray players, satellite and set-top-boxes and with a cross matrix design this device gives the ability to send infrared signals from place to place. When used with an HDMI/converter matrix, this brilliant product will allow you to freely manage your sources and displays. Simply place the IR receiver near the display and put the IR blaster in a position so that all devices will be able to function properly, even when they are hidden in a cabinet or placed far away. So if your looking for a way to extend IR control over great distances, you have but one choice: The Infrared 4 by 4 Matrix
- Supports independent IR receiver and IR blaster selection and control
- This device does not send audio/video signals, it only transmits and receives infrared signals to control equipment that is far away, using IR extender cables.
- Supports a frequency of 30KHz ~ 50KHz.
- Use your existing remote controls.
IR Frequency | 30KHz to 50KHz |
Input port | 4 x independent IR Blasters; 1 x total IR blaster control |
Output port | 4 x independent IR Receiver; 1 x total IR receiver control |
Power Supply | 5VDC/1A (US/EU standards, CE/FCC/UL certi?ed) |
ESD Protection | Human body model: ± 8kV (air-gap discharge) |
| ± 4kV (contact discharge) |
Dimensions (mm) | 180(W) x 124(D) x 25(H) |
Weight(g) | 450 |
Chassis Material | Aluminum |
Silkscreen Color | Silver |
Power Consumption | 0.86W |
Operating Temperature | 0?C~40?C / 32?F ~ 104?F |
Storage temperature | -20?C~60?C / -4?F ~ 140?F |
Relative Humidity | 20~90% RH (non-condensing) |
