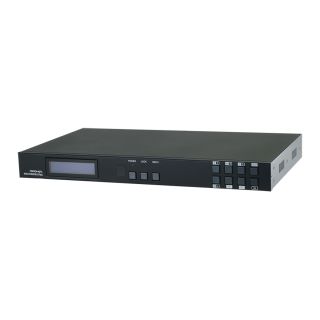

4 by 6 Matrix - Cypress CMSI-46PL

Artikelnummer: CMSI-46PL

Herstellernummer: CMSI-46PL

The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsi ...

Kategorie: Matrices


1.798,00 €

exkl. 19% USt. ,(Standard)

Muss bestellt werden. Ab Bestellung lieferbereit in 35 Tagen.

Lieferzeit: 36 - 38 Werktage



The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.
  • Supports resolutions VGA to WUXGA and 480i to 1080p dependent upon the output display?s EDID settings
  • Supports distances up to 70 meters through CAT6/7 cables and 60m for CAT5e
  • Supports 3D signal display dependent upon the output display?s EDID settings
  • Supports bidirectional IR from input and output locations
  • Supports external and internal EDID settings
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio Transmission
  • Supports PoC (Power over Cable) on compatible receiver only

Video Bandwidth

225MHz/6.75Gbps

Input Ports

4 x HDMI, 5 x IR Extender, 1 x RS-232, 1 x LAN (Control only), 1 x RJ45 (Control Only), 1 x USB Mini-B (Service Only)

Output Ports

2 x HDMI, 4 x CAT5e/6/7, 5 x IR Blaster

Power Supply

24V / 3.75A DC (US/EU standards, CE/ FCC/UL certified)

ESD Protection

Human Body model:



± 8kV (air-gap discharge)



± 4kV (contact discharge)

Dimensions (mm)

436(W) x 249(D) x 44(H)/Jacks Excluded 436(W) x 255(D) x 48(H)/Jacks Included

Weight(g)

3334

Chassis Material

Metal

Silkscreen Color

Black

Operating Temperature

0?C~40?C / 32?F ~ 104?F

Storage temperature

-20?C~60?C / -4?F ~ 140?F

Relative Humidity

20~90% RH (no condensation)

Power Consumption (W)

40W
