4K HDMI and DisplayPort to HDMI optical wall-plate converter - Opticis HDHF-4K

Artikelnummer: HDHF-4K

Herstellernummer: HDHF-4K

Herkunftsland: Südkorea

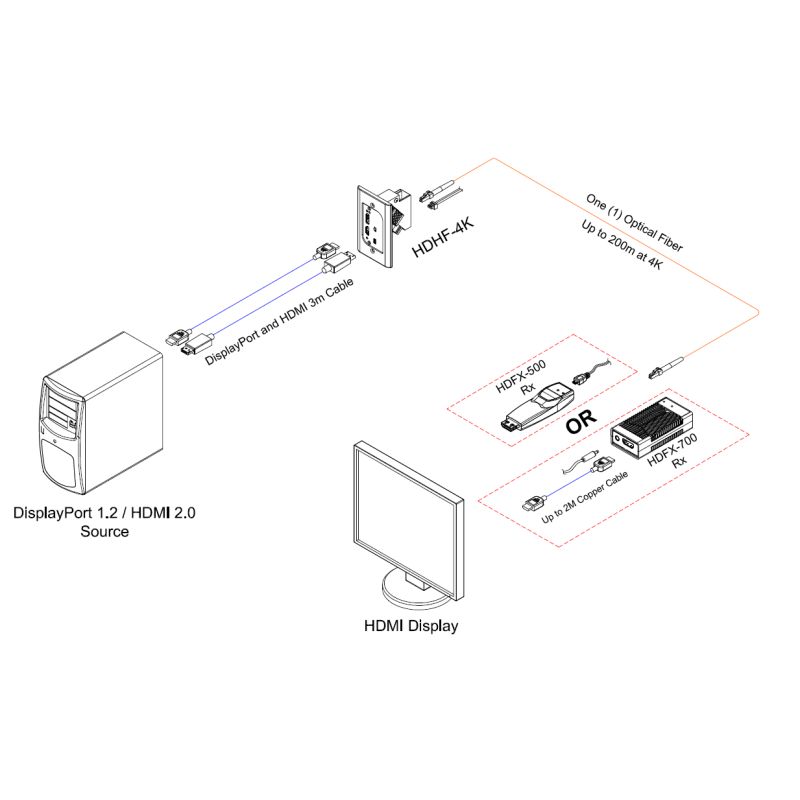

1 Gang-sized Multi-format Wall Plate Converter, HDHF-4K receives HDMI 2.0 and DisplayPort 1.2 into optical HDMI 2.0 signal and transmits it up to 200m(656ft) over one (1) multi-mode fiber (OM3) without any data compression or latency. To recover electrical HDMI signal, one (1) fiber HDMI receiver, HDFX-500-RX and HDFX-700-RX should be used at the display end.

Kategorie: HDMI


Preis auf Anfrage
Muss bestellt werden. Ab Bestellung lieferbereit in 30 Tagen.


  • Supports both DisplayPort 1.2 and HDMI 2.0 4K signals
  • Supports up to 4K (4096x2160) at 60Hz, (RGB & YcbCr : 4 : 4 : 4 )
  • Transmits converted optical signal up to 200m (656ft) over LC terminated 1 core multi-mode fiber (OM3)
  • Operated via DIP switch to select DisplayPort 1.2 or HDMI 2.0 for conversion and transmission.
  • Equipped with three (3) LEDs for power detection and HDMI and DisplayPort signal selection.

Abmessungen(LxBxH) ( Länge × Breite × Höhe ): 7,80 × 7,00 × 11,50 cm
