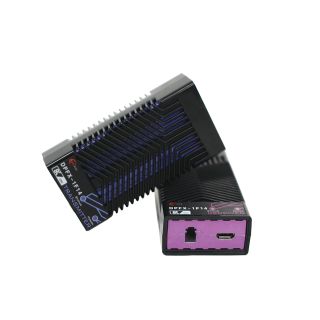

8K DisplayPort 1.4 Optical Extender - Opticis DPFX-1F14

Artikelnummer: DPFX-1F14

Herstellernummer: DPFX-1F14

Herkunftsland: Südkorea

DPFX-1F14-TR, which means DisplayPort Extender with one (1) Fiber that supports DisplayPort 1.4 signal. It extends to 200m (656 feet) and transmits up to 8K DSC (7680x4320) at 60Hz. The cutting-edge technology of Opticis reduces limits in the installation by providing an option for a longer additional extension.

Kategorie: DisplayPort

Preis auf Anfrage
Muss bestellt werden. Ab Bestellung lieferbereit in 30 Tagen.

DPFX-1F14-TR transmits uncompressed and transparent data signal even when used with up to 3m copper cable as an intermediary. This enables the installation of the product in a limited-spaced area. A 2m copper cable is provided in the shipping group.

Furthermore, to meet all the customers' needs, DPFX-1F14-TR is fully interoperable using DPFX-700-TR and DPFX-300-TR. Depending on the circumstances, customers can choose to use a direct connection type module on one side and an additional extension type module on the other.

DPFX-1F14-TR gives slim, light, and easy installation with perfect electrical isolation, but without electrical hazard and interference. It is an operated external DC power adapter.

Tech Specs

  • Supports DisplayPort 1.4 standards • Extends up to 8K DSC(7680x4320) at 60Hz and 4K(3840x2160) at 144Hz
  • Transmits DisplayPort 1.4 data up to 200m (656feet) over one (1) LC multi-mode fiber (OM3)
  • Extra additional extension available up to 3m on each side (TX/RX)
  • Offers total data rate 32.4 Gbps (8.1 Gbps per lane)
  • Supports Multi-Stream Transport
  • Plug & Play
  • Data security with negligible EMI emission
  • Label color distinction: TX (purple heart) & RX (red violet)
  • Certifies FCC and CE standards for EMI/RFI emission
Abmessungen(LxBxH) ( Länge × Breite × Höhe ): 7,60 × 3,90 × 2,00 cm
