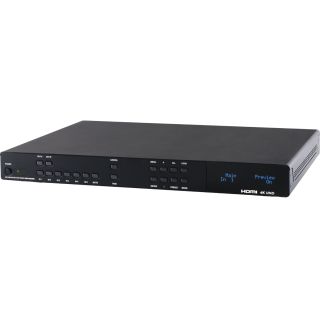

4K UHD 6×2 HDMI Matrix with Audio De-embedding - Cypress CDPS-6H2HFS

4K UHD 6×2 HDMI Matrix with Audio De-embedding - Cypress CDPS-6H2HFS

Artikelnummer: CDPS-6H2HFS
HAN: CDPS-6H2HFS
Kategorie: Matrices
Hersteller: Cypress Technology

The 6 by 2 HDMI matrix which allows HDMI signal from any of its six sources to be routed to and displayed on any of its two con ...

813,09 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

The 6 by 2 HDMI matrix which allows HDMI signal from any of its six sources to be routed to and displayed on any of its two connected HDMI displays simultaneously with View All Mode and Picture-inpicture (PIP) supported. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. It supports 4Kx2K, 3D, 36-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232 or Ethernet protocol.

HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
Support six HDMI inputs and two HDMI outputs
Displays any of six (6) High-Definition sources on two (2) HDTV displays simultaneously with fast switch
When in Preview mode, the system will be treated as Switcher (two HDMI output same images at the same time)
In Preview mode, it support View All (1 Main video source and 5 Sub video sources) and PIP (1 Main video source and 1 Sub video source) but 3D and 4K2K sources inputs are not supported
3DTV Pass-Through
Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30 & 4096x2160@30Hz)
Supports Optical audio extraction
Supports Optical audio sampling rate output up to 192kHz
Supports data rate from 300Mbps to 3Gbps and Deep Color up to 1080p 36-bit
Supports individual EDID or common EDID
Supports LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Dolby TrueHD and DTS-HD Master Audio
Supports 6 sets of Matrix preset functions for input/output setting
Input port HDCP support Standard and Apple mode and the Apple mode selection to guarantees the use of Apple devices
Compliant with DVI source (Not support Deep color and Color space YCbCr 422/444)
Supports OSD on output B under Preview Mode

Frequency Bandwidth	300Mbps to 3Gbps
Input Ports	6 x HDMI 1 x USB (Service only) 1 x Control 1 x RS-232 1 x IR
Output ports	2 x HDMI
2 x Optical (S/PDIF)
Resolution	480i~1080p@50/60, 1080p@24, 4K x 2K (3840x2160/4096x2160@30Hz)
Output Level	VGA~WUXGA
THD+N
Frequency Response
SNR
Crosstalk
IR Frequency	30~50kHz
Power Supply	5VDC/2.6A (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Dimensions	438mm (W) x 269mm (D) x 44mm (H) /Jacks Excluded 482mm (W) x 278mm (D) x 53mm (H) /Jacks & Rack Ears Included
Weight	3042 g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0˚C~40˚C / 32˚F ~ 104˚F
Storage Temperature	-20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity	20~90% RH (no condensation)
Power Consumption (W)	4.7
