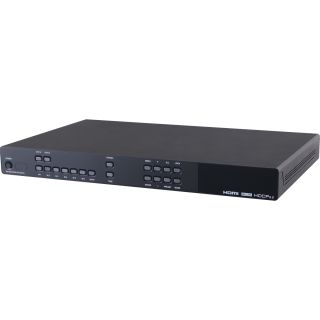

4K UHD 6×2 HDMI Matrix with Audio De-embedding (HDCP 2.2 Compliant) - Cypress CDPS-UA6H2HFS

4K UHD 6×2 HDMI Matrix with Audio De-embedding (HDCP 2.2 Compliant) - Cypress CDPS-UA6H2HFS

Artikelnummer: CDPS-UA6H2HFS
HAN: CDPS-UA6H2HFS
Kategorie: Matrices
Hersteller: Cypress Technology

The 6 by 2 HDMI Matrix with Fast Switching allows HDMI signal from any of its 6 sources to be routed to and displayed on any of ...

1.102,60 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

The 6 by 2 HDMI Matrix with Fast Switching allows HDMI signal from any of its 6 sources to be routed to and displayed on any of its 2 connected HDMI displays simultaneously with 'View All' mode and Picture-in-Picture (PIP) supported. With fast switching technology the unit can greatly eliminate the time required by swapping or turning on/off the connected displays. It supports 4K2K, 3D, 30-bit Deep Color, Hi-Def audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232 or Ethernet protocol.

HDMI (with 3D and 4K2K supported), HDCP 2.2 and DVI compliant
Displays any of 6 HD sources on 2 HDTV displays simultaneously with fast switching
When in Preview mode, the system will be treated as Switcher (2 HDMI output same images at the same time)
In Preview mode, it support View All (1 Main video source and 5 Sub video sources) and PIP (1 Main video source and 1 Sub video source)
Supports 3D signal bypass
Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 3840×2160@50/60 (YUV420), 4096×2160@24/25/30Hz & 4096×2160 @50/60Hz (YUV420)
Supports Optical audio extraction and audio sampling rate output up to 192kHz
Supports data rate up to 3Gbps and 'Deep Color' up to 1080p@60Hz, 36-bit
Supports individual EDID or common EDID
Supports passthrough of audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master Audio
Supports 6 sets of matrix preset functions for input/output setting
Input ports HDCP support Standard and Apple modes
Compliant with DVI source (not support 'Deep Color' and YCbCr 422/444 color spaces)
Supports OSD on output B under Preview mode

Video Bandwidth	300MHz/9Gbps
Input Ports	6 x HDMI 1 x USB(Service) 1 x RS232 1 x RJ45(Control) 1 x IR
Output Ports	2 x HDMI 2 x Optical(S/PDIF)
Supported Resolutions	480i~1080p@50/60 4K2K@24/25/30 4K2K@50/60(YUV 420) VGA~WUXGA(RB)
IR Frequency	30~50kHz
Baud Rate	Up to 115200 bps
Power Supply	5VDC/2.6A (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human Body model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Chassis Material	Metal
Silkscreen color	Black
Dimensions	438mm (W) x 269mm (D) x 44mm (H) (Jacks excluded) 482mm (W) x 274mm (D) x 49mm (H) (Jacks included)
Weight	1892g
Operating Temperature	0˚C~40˚C / 32˚F ~ 104˚F
Storage temperature	-20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity	20~90% RH (no condensation)
Power Consumption	11.44w
