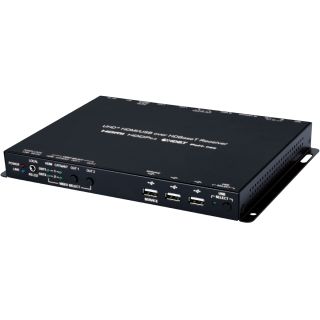

HDMI/HDBaseT/USB to HDMI Receiver - Cypress CH-2603RX

HDMI/HDBaseT/USB to HDMI Receiver - Cypress CH-2603RX

Artikelnummer: CH-2603RX
HAN: CH-2603RX
Kategorie: Matrices
Hersteller: Cypress Technology

This HDBaseT 2.0 Receiver is designed for use in environments needing a wide range of flexibility when it comes to inputs, outpu ...

969,73 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDBaseT 2.0 Receiver is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. With a 2 by 2 matrix arrangement of HDBaseT & HDMI inputs and dual HDMI outputs this Receiver can handle a variety of source routing scenarios. The HDMI input and outputs support resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) while the HDBaseT input supports resolutions up to a maximum of 4K@60Hz (YUV 4:2:0, 8-bit). A balanced analog stereo audio breakout is also provided (LPCM 2.0 sources only) allowing for professional local powered speakers to be easily added to the system. The HDBaseT input not only supports video and audio but also bi-directional Ethernet, RS-232, USB, and IR.

When paired with this unit’s standard Transmitter, up to 3 switchable USB 2.0 host (Type B) connections are available (2 on the Transmitter, 1 on the Receiver) which connect to 6 USB 2.0 (Type A) device ports (3 on the Transmitter, 3 on the Receiver) for a multi-source, bi- irectional, and highly flexible KVM configuration (Note: Only 1 USB host may be active at a time).

This Receiver (PSE) can provide PoH (Power over HDBaseT) power to the connected HDBaseT Transmitter (PD) (compatible Transmitters only), allowing for greater flexibility within different installation scenarios. This unit is controllable via front-panel controls, WebGUI, Telnet, and RS-232.

2×2 matrix switching (both HDMI outputs are independent)
Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, PoH, and control (bi-directional IR/RS-232/USB pass-through)
Balanced analog stereo audio breakout
Flexible USB host selection using front panel buttons
Multiple USB hosts may be connected at once (up to 3 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
Supports providing PoH power from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)

Interfaces
Input Port	1 HDMI (Type-A) 1 HDBaseT (RJ-45)
Output Port	2 HDMI (Type-A) 1 Balanced Stereo (5-pin Terminal Block)
Control I/O	1 LAN (RJ-45) 1 RS-232 (3.5mm)
Pass-through Port	1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 3 USB 2.0 (Type A) 1 USB 2.0 (Type B) 1 RS-232 (3-pin Terminal Block)

Video
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
Input Signal Types	HDMI 4K@60 8bit YUV 4:4:4 HDMI 4K@60 8bit YUV 4:2:4
Output Signal Type	HDMI 4K@60 8bit YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60
	HDBT	4096×2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096×2160p@60

Audio
HDMI	LPCM (8 Channels), Bitstream, HD Bitstream
HDBT	LPCM (8 Channels), Bitstream, HD Bitstream
Analog Out	1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	24V/3.75A DC
Power Consumption	22.33W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×44mm×160mm [Case Only] 231.5mm×44mm×167mm [All Inclusive]
Weight	928g

Field Firmware Update
Interfaces	PC Update, WebGUI

Ordering Information
Model No.	Product Description
CH-2603RX	HDMI/HDBaseT/USB to HDMI Receiver
CH-2603TX	HDMI/DP/VGA/USB to HDMI/HDBaseT Transmitter
