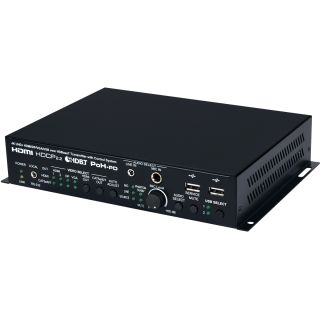

HDMI/DP/VGA/USB to HDMI/HDBaseT Transmitter - Cypress CH-2603TX

HDMI/DP/VGA/USB to HDMI/HDBaseT Transmitter - Cypress CH-2603TX

Artikelnummer: CH-2603TX
HAN: CH-2603TX
Kategorie: Matrices
Hersteller: Cypress Technology

This HDBaseT 2.0 Transmitter is designed for use in environments needing a wide range of fl exibility when it comes to inputs, o ...

1.105,24 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDBaseT 2.0 Transmitter is designed for use in environments needing a wide range of fl exibility when it comes to inputs, outputs, and control. The three most common video input interfaces (HDMI, DisplayPort, and VGA w/ stereo audio) are included, providing the ultimate in source compatibility and fl exibility. The HDMI and DisplayPort inputs support resolution/timing up to a maximum of 4K@60Hz (4:4:4, 8-bit) which is converted, when appropriate and necessary, for transmission over HDBaseT. The selected source (video & audio) can be transmitted over Cat.6/7 cable up to 100m along with bi-directional Ethernet, RS-232, USB, and IR. Due to the matrixing capability of this unit, any source may also be selected for independent output over the local HDMI output. The included microphone input, with optional 48V/5V phantom power support, feeds directly into a DSP mixer, allowing for powerful presentations with live voice-overs mixed with the source’s original audio or even an impromptu karaoke session.

When paired with this unit’s standard Receiver, up to 3 switchable USB 2.0 host (Type B) connections are available (2 on the Transmitter, 1 on the Receiver) which connect to 6 USB 2.0 (Type A) device ports (3 on the Transmitter, 3 on the Receiver) for a multi-source, bi-directional, and highly flexible KVM confi guration (Note: Only 1 USB host may be active at a time). This Transmitter also provides an interface for a remote control keypad, or trigger interface, which can be easily installed within a podium or table in a conference room or classroom.

This Transmitter may be powered locally using a standard power supply, or it can be powered via PoH (Power over HDBaseT) provided by a compatible Receiver (PSE), allowing for greater flexibility within different installation scenarios. This unit is controllable via front panel ontrols, WebGUI, Telnet, Triggers, and RS-232.

4×2 matrix switching (HDMI and HDBaseT outputs are independent)
Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, PoH, and control (bi-directional IR/RS-232/USB pass-through)
Supports pass-through of 8 channel LPCM, Bitstream & HD Bitstream audio formats
Balanced analog stereo audio breakout
Microphone input supports optional 48V or 5V phantom power
Microphone input feeds into a DSP mixer allowing adjustable mix level controls
Flexible USB host selection using front panel buttons
Multiple USB hosts may be connected at once (up to 3 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
Supports extended keypad (trigger) control for easy, single button, function activation (optional equipment)
Supports local power, or power via PoH from a connected Receiver (PSE) (compatible Receivers only)

Interfaces
Input Port	2 HDMI (Type-A) 1 DisplayPort 1 VGA (HD-15) 2 Unbalanced Stereo (3.5mm) 1 Microphone (6.35mm)
Output Port	1 HDBaseT (RJ-45) 1 HDMI (Type-A) 1 Balanced Stereo (5-pin Term. Block)
Control I/O	1 RS-232 (3.5mm) 1 Trigger (10-pin Terminal Block) 1 LAN (RJ-45)
Pass-through Port	1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 2 USB 2.0 (Type A) 2 USB 2.0 (Type B) 1 RS-232 (3-pin Terminal Block) 1 USB 2.0 (Type A) with Service function

Video
HDMI Compliance	2.0
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:2:0

Audio
HDMI	LPCM 8 channel Bitstream High-Defi nition Bitstream
Line In	Max Audio Level: 1Vrms Impedance: 10kΩ Type: Unbalanced

Power
Power Supply	24V/3.75A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	23.54W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×44mm×167mm [Case Only] 231.5mm×44mm×174mm [All Inclusive]
Weight	1204g

Field Firmware Update
Interfaces	USB Flash Drive, WebGUI

Ordering Information
Model No.	Product Description
CH-2603TX	HDMI/DP/VGA/USB to HDMI/HDBaseT Transmitter
CH-2603RX	HDMI/HDBaseT/USB to HDMI Receiver
CH-2606RX	HDBaseT to HDMI/USB Receiver
