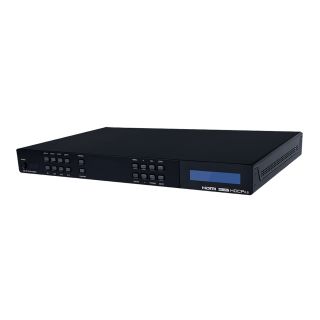

UHD+ 4 x 4 Matrix with USB Power Supply - Cypress CPLUS-V4H4HP

UHD+ 4 x 4 Matrix with USB Power Supply - Cypress CPLUS-V4H4HP

Artikelnummer: CPLUS-V4H4HP
HAN: CPLUS-V4H4HP
Kategorie: Matrices
Hersteller: Cypress Technology

This 4K UHD 4 by 4 Matrix provides the ability to connect up to four 4K UHD HDMI sources to up to four 4K UHD HDMI displays and ...

989,09 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 4K UHD 4 by 4 Matrix provides the ability to connect up to four 4K UHD HDMI sources to up to four 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 48-bit Deep Color, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. With a comprehensive EDID management feature that includes the ability to select between built in default EDID, EDID copied from connected sink devices, as well as a configurable EDID, this matrix can solve many interconnectivity problems. This unit also features four USB ports which supply up to 5V/1A power for use with connected optical fiber or AOC fiber cable extenders. By using these specialized cables your HDMI content can be extended much further than would be possible with normal HDMI cables. The built in OSD has the ability to display user editable general information text so each output can display up to 2 lines of customized text on top of the video source in the color of your choice. This unit provides an intuitive set of front panel controls with an OSD as well as RS-232, telnet, WebGUI, and IR remote control options.

HDMI input and output with 18Gbps (600MHz) 4K UHD support
Supports 16-bit Deep Color up to 1080p60
Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats
Supports six internal EDIDs, four external EDIDs copied from connected devices, and four user provided EDIDs
Four USB ports to supply 5V/1A power to optical fiber and AOC fiber extension cables
OSD with user customizable information text
Intuitive control interface including telnet, WebGUI, OSD, IR remote and RS-232
Easy firmware update via USB thumb drive in field

Interfaces
Input Port	4 HDMI (Type-A)
Output Port	4 HDMI 4 USB port (5V/1A power supply)
Control I/O	1 IR In 1 RS-232 1 Service (USB) 1 Control

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160p@60 8-bit YUV 4:4:4
Output Signal Type	4096x2160p@60 8-bit YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Power
Power Supply	24VDC/3.75A

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	438mm x 49mm x 269mm [Case Only] 482mm x 49mm x 274mm [All Inclusive]
Weight	2966g

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CPLUS-V4H4HP	UHD+ 4 x 4 Matrix with USB Power Supply
