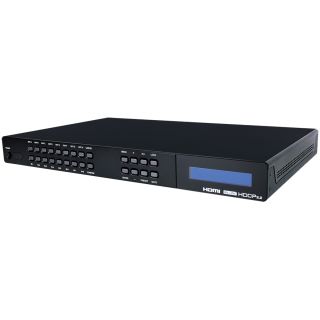

UHD+ 8×8 HDMI Matrix with USB Power Outputs - Cypress CPLUS-V8H8HP

UHD+ 8×8 HDMI Matrix with USB Power Outputs - Cypress CPLUS-V8H8HP

Artikelnummer: CPLUS-V8H8HP
HAN: CPLUS-V8H8HP
Kategorie: Matrices
Hersteller: Cypress Technology

This 8 by 8 Matrix has the ability to connect up to eight 4K UHD HDMI sources to up to eight 4K UHD HDMI displays and freely swi ...

2.537,84 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 8 by 8 Matrix has the ability to connect up to eight 4K UHD HDMI sources to up to eight 4K UHD HDMI displays and freely switch between them. The unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as supports for 16-bit Deep Color up to 1080p@60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a specification. With a comprehensive EDID management feature that includes the ability to select among built in default EDID, EDID copied from connected sink devices, as well as a configurable EDID, this matrix can solve many interconnectivity problems. There are eight audio outputs can pair with HDMI output individually. The builtin OSD has the ability to display user editable general information text so each output can display up to 2 lines of customized text on top of the video source in the color of your choice. The unit provides an intuitive set of front panel controls with an LCD as well as RS-232, Telnet, WebGUI, and IR remote control options

Eight HDMI inputs matrixed to eight HDMI outputs with 18Gbps (600MHz) 4K UHD support
Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)
Supports 16-bit Deep Color up to 1080p@60Hz
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Supports six internal EDIDs, eight external EDIDs copied from connected devices, and four user provided EDIDs
Eight Audio output ports can pair with eight HDMI outputs individually.
OSD with user customizable information text

Interfaces
Input Port	8 HDMI
Output Port	8 HDMI 8 Unbalanced Stereo (3.5mm)
Control Port	1 Control (RJ-45) 1 RS232 (DB9) 1 IR IN (3.5mm)
Service Port	1 USB (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160p@60 8-bit YUV 4:4:4
Output Signal Type	4096x2160p@60 8-bit YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
Digital Formats	HDMI 8CH LPCM, Bitstream, HD Bitstream
Analog Formats	Unbalanced 2 Channel

Power
Power Supply	24V/6.25A
Power Consumption	70W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	438mm×44mm×269mm [Case Only] 438mm×49mm×274mm [All Inclusive]
Weight	3,600 g

Field Firmware Update
Interface	USB Flash Drive, WebGUI

Ordering Information
Model No.	Product Description
CPLUS-V8H8HPA	A UHD+ 8×8 HDMI Matrix with Audio Output
