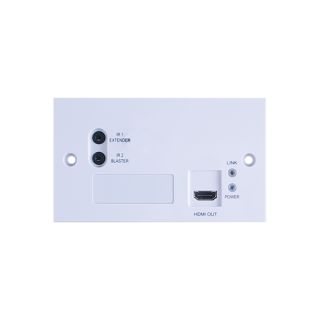

4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR & PoC (PD) (2 Gang UK) - Cypress CH-507RXWPL

4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR & PoC (PD) (2 Gang UK) - Cypress CH-507RXWPL

Artikelnummer: CH-507RXWPL
HAN: CH-507RXWPL
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed to receive uncompressed video, audio and IR control data from a c ...

227,91 €

exkl. 19% USt. , zzgl.

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed to receive uncompressed video, audio and IR control data from a compatible transmitter over a single run of CAT5e/6/7 cable at a distance of up to 60 meters. It has the added benefit of control through the built-in IR ports. Additionally, it can be powered by a compatible transmitter unit via the Power over Cable (PoC) functionality allowing for greater flexibility in installations.

HDMI with 3D, 4K2K support, HDCP and DVI compliant
Supports HDCP repeater and CEC bypass functions
Simultaneous tranmisson of uncompressed data over a single 60m CAT5e/6/7 cable
Uncompressed video support up to 1080p@60 Hz/36-bit
High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Easy to install wall plate design

HDMI Bandwidth	10.2Gbps
HDBaseT Bandwidth	10.2Gbps
Input Ports	1×CAT5e/6/7, 1×IR Extender
Output Ports	1×HDMI, 1×IR Blaster
IR Frequency	30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate	up to 115200/sec
ESD Protection	Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions	145.7 mm (W)×85.7 mm (D)×36.5 mm (H)/ Jacks Excluded 145.7 mm (W)×85.7 mm (D)×39.5 mm (H)/ Jacks Included
Weight	160 g
Chassis Material	Plastic
Color	White
Operating Temperature	0°C~40°C/32°F~104°F
Storage Temperature	−20°C~60°C/−4°F~140°F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	12 W (PoC), 9 W (Main)
