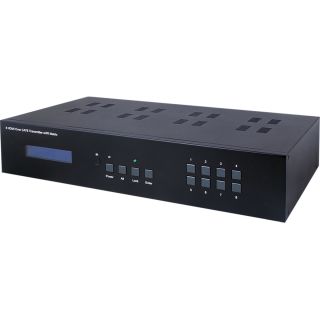

8 HDMI over CAT6 Point-to-Point Transmitter (with IR Matrix) - Cypress CSI-8H8CV2IR
The 8 HDMI? over CAT6 Point-to-Point Transmitter (with IR Matrix) offers advanced point-to-point distribution of HDBaseT? signals up to lengths of 100m over single CAT5e/6/7 cable. It supports digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Mater Audio. 3D content can be displayed when connecting a 3DTV and 3D source. With the potential for use with any standard 8 HDMI output matrix or distribution amplifier, this solution can work with any matrix / DA to add 8 HDBaseT outputs with only a single power supply. This device has the added functionality of an in-built 8x8 IR matrix system which allows for two-way control of the sources and screens. This transmitter solution can provide Power over Ethernet (PoE) to the receiver unit adding additional integration benefits.
- HDMI, HDCP1.1 and DVI compliant
- Supports HDMI 3D, 4k x 2k features
- Supports Stereo digital audio signal input and output
- Supports high bit-rate audio up to 192 kHz
- Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display?s EDID settings
- Supports extension up to 100 meters through CAT5e/6
- Supports 3D signal display dependent upon the output display's EDID settings
- Supports HDMI input up to 10 meters at 8-bit resolution or 3 meters at 12-bit resolution
- Supports bi-directional IR from input and output locations
- Supports RS-232, remote control and on-panel control
- Supports PoE (Power over Ethernet) on compatible receivers only
- 2U size design
Video Bandwidth | 300 MHz/10.2 Gbps |
Input Ports | 8×HDMI, 9×IR Extender, 1×RS-232 |
Output Ports | 8×CAT5e/6/7, 9×IR Blaster, 1×RS-232 |
Input/Output Resolution | VGA~WUXGA, 480i~1080p@24/50/60, 4kx2k@24/25/30 |
ESD Protection | Human-body Model: ±8 kV (Air-gap discharge) ±4 kV (Contact discharge) |
Power Supply | 24 V/6.25 A DC (US/EU standards, CE/FCC/ UL certified) |
Dimensions | 432 mm (W)×210 mm (D)×93 mm (H) |
Weight | 3312 g |
Chassis Material | Metal |
Silkscreen Color | Black |
Operating Temperature | 0 ºC~40 ºC/32 ºF~104 ºF |
Storage Temerature | ?20 ºC~60 ºC/?4 ºF~140 ºF |
Relative Humidity | 20~90 % RH (non-condensing) |
Power Consumption | 90 W (Including Transmitter) |
