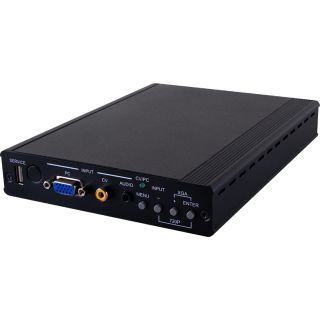

CH-516TXAS - VGA/CV to HDBaseT Scaler

Artikelnummer: CH-516TXAS
HAN: CH-516TXAS
Kategorie: Cypress Technology
Hersteller: Cypress Technology

The CH-516TXAS is an HDBaseT Transmitter Scaler supporting PC or Composite Video (CV) input. It can scale and switch the video sources, and send the digitalized signal over a single run of CAT ...

429,00 €

exkl. 19% USt. , zzgl.

Knapper Lagerbestand
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The CH-516TXAS is an HDBaseT Transmitter Scaler supporting PC or Composite Video (CV) input. It can scale and switch the video sources, and send the digitalized signal over a single run of CAT5e/6/7 cable to the Receiver at a distance up to 100 meters, along with an external audio input, 2-way IR, RS-232 and bidirectional LAN serving. Control is via on-panel buttons or IR remote control and there is an On-screen Display (OSD) providing selection and system information. The device provides a full range of output resolutions, up to 1080p and WUX-GA (RB). The bidirectional Power over Ethernet (PoE) function provides greater flexibility in installations.

Supports PC/CV scaling to a full range of HDTV or PC resolutions up to 1080p and WUXGA (RB)
Transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft
5Play™ convergence: Video and Audio, LAN serving, bidirectional Power over Ethernet (PoE) and Control (IR/RS-232 bypass)
Supports IR, Remote control, RS-232 (bypass) and on-panel controls
Provides bidirectional 24V DC power to or receive from compatible PoE Receiver through CAT5e/6/7 cable
Supports Ethernet transmission rates up to 100 Mbps
Supports NTSC and PAL formats for Composite Video input

Inputs	1x HD-15 [1x PC RGBHV] 1x RCA [1x Composite Video] 1x 3.5mm [1x Stereo(L/R)] 1x 3.5mm [1x Infrared Receiver] 1x DE-9 [1x RS-232 Data] 1x USB Type-A [1x SERVICE Propriety Data]
Outputs	1x RJ-45 [1x HDMI & Propriety Data] 1x 3.5mm [1x Infrared Emitter]
PSU:	24V/2.7A
Dimensions	145mm [W] x 202mm [D] x 30mm [H]
Net Weight	606g
