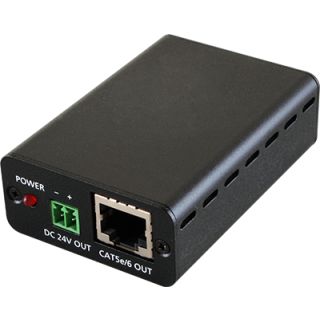

CH-POC1 - HDBaseT Power Inserter

Artikelnummer: CH-POC1
HAN: CH-POC1
Kategorie: Cypress Technology
Hersteller: Cypress Technology

?The HDBaseT Power Inserter is designed to provide 24V power to a connected PoC-capable HDBaseT Receiver unit for it to operate without power supply. In a simple application of HDBaseT PoC ext ...

97,00 €

exkl. 19% USt. ,

Knapper Lagerbestand
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

?The HDBaseT Power Inserter is designed to provide 24V power to a connected PoC-capable HDBaseT Receiver unit for it to operate without power supply. In a simple application of HDBaseT PoC extender set, the Receiver unit can be powered by the connected transmitter unit, over a single run of CAT5e/6/7 cable. However, when comes to an integration of multiple HDBaseT devices, the PoC-capable Receiver unit might not always be able to benefit from the PoC feature as the transmitter could be either non-PoC or its power output is used by other device, to work around such a situation you can install HDBaseT Power Inserter to the system to insert the power required by the Receiver unit.

Supports power insertion

Supports HDBaseT signal bypass

Power cascading

Compact and easy to use

Inputs	1x RJ-45 [1x HDMI & Propriety Data] 1x Terminal Block 2-pin [1x Power Block]
Outputs	1x RJ-45 [1x HDMI & Propriety Data] 1x Terminal Block 2-pin [1x Power Block]
PSU:	24V/2.7A
Dimensions	50mm [W] x 73mm [D] x 23mm [H]
Net Weight	353g
