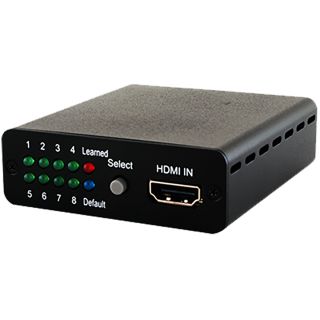

HDMI EDID Emulator - Cypress CED-1M

Artikelnummer: CED-1M
HAN: CED-1M
Kategorie: Power Manager
Hersteller: Cypress Technology

The HDMI EDID Emulator is designed to allow the adjustment of HDMI/DVI EDID information that is provided to a source device by a ...

149,00 €

exkl. 19% USt. ,

Knapper Lagerbestand
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI EDID Emulator is designed to allow the adjustment of HDMI/DVI EDID information that is provided to a source device by a connected display so that it can output the correct video/audio signal. Aiming to simplify the technical complications involved in video/audio system integration, home theater installation, video/audio equipment testing and experimentation, the unit’s learning function allows the user to Read and Write the video/audio EDID to the system. It also supports EDID Emulation and Bypass modes.

Supports the following HDMI features:
- High video bandwidth up to 300MHz/9Gbps
- Resolutions up to 1080p@60Hz and 4K×2K@24/25/30Hz
- 12-bit Deep Color
- LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master
Audio (Sampling rates from 32kHz to 192kHz)
Supports four different EDID functions:
- Read: Reads the TV/display’s EDID information
- Write: Overwrites the TV/display’s EDID information (TV/display needs to support overwrite function)
- Emulator: Allows the source device to read the selected EDID information from the unit’s Default or Learned EDID memory
- Bypass: Allows the source device to read the EDID information directly from the TV/display
Supports up to 8 sets of default EDID settings
Supports DVI sources by using a HDMI to DVI adaptor
Supports CEC and EDID pass-through
Supports being powered by USB or compatible HDMI input

Interfaces
Input Port	1×HDMI 1×Mini-USB (Power only)
Output Port	1×HDMI

Video
HDMI Compliance	1×HDMI 1×Mini-USB (Power only)
HDCP Compliance	1×HDMI
Input Signal Type	1080p60 12-bit
Output Signal Type	1080p60 12-bit

Resolutions
Maximum Input	1920×1080p@60 1920×1200p@60RB
Maximum Output	1920×1080p@60 1920×1200p@60RB

Power
Power Supply	5V/500mA
Power Consumption	2.5W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	71mm × 23mm × 65mm [Case Only] 71mm × 23mm × 71mm [All Inclusive]
Weight	108g

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CED-1M	HDMI EDID Emulator
