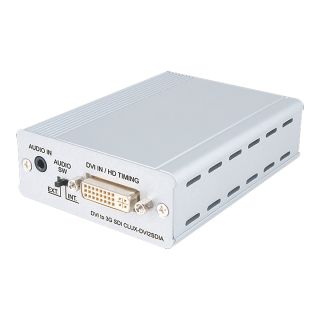

DVI to 3G SDI Converter - Cypress CLUX-DVI2SDIA

DVI to 3G SDI Converter - Cypress CLUX-DVI2SDIA

Artikelnummer: CLUX-DVI2SDIA
HAN: CLUX-DVI2SDIA
Kategorie: Format Converters
Hersteller: Cypress Technology

The DVI to SDI Converter allows DVI-D signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give y ...

289,51 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

The DVI to SDI Converter allows DVI-D signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition DVI signal with audio to SDI for long distance transmission and display your work on SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the DVI embedded audio, and send to the SDI output.

Shows DVI source on SDI display
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
Converts DVI signals to SDI:
(1) 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
(2) 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
(3) 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports DVI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Note: Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications.

Interfaces
Input Port	1×DVI 1×3.5 mm Phone Jack
Output Port	1×BNC (SD/HD/3G-SDI)

Video
HDMI Compliance	HDMI 1.3(DVI1.0)
HDCP Compliance	HDCP 1.4
Input Signal Types	1080p60
Output Signal Type	1080p60

Resolutions
Maximum Input	DVI	1920×1080p@60
Maximum Output	BNC (SD/HD/3G-SDI))	1920×1080p@60

Power
Power Supply	5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	4.3 W

Enclosure
Chassis Material	Aluminum
Chassis Color	Silver
Dimensions (W×H×D)	78.5mm × 30mm × 124mm
Weight	204g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CLUX-DVI2SDIA	DVI to 3G SDI Converter
