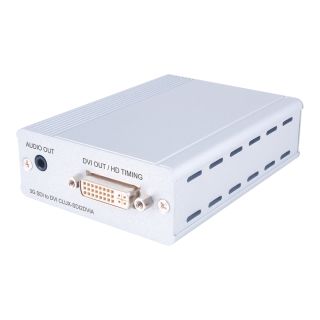

SDI to DVI VIDEO FORMAT CONVERTER - Cypress CLUX-SDI2DVIA

SDI to DVI VIDEO FORMAT CONVERTER - Cypress CLUX-SDI2DVIA

Artikelnummer: CLUX-SDI2DVIA
HAN: CLUX-SDI2DVIA
Kategorie: Format Converters
Hersteller: Cypress Technology

The SDI to DVI Converter allows SD, HD and 3G-SDI signals to be shown on DVI display. This means that it is now easier for profe ...

262,23 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

The SDI to DVI Converter allows SD, HD and 3G-SDI signals to be shown on DVI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on DVI display. Additionally, the built-in stereo Audio Out will allow the user to enjoy perfectly synchronized video and audio.

• Supports the SD-SDI (SMPTE 259M-C), HD-SDI (SMPTE 292M), and 3G-SDI (SMPTE 424M/425M-A) standards

• Supports standard SDI input resolutions including: 480i@59.94Hz, 576i@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/ 50/59.94/60Hz

• Performs unscaled format conversion from SDI to HDMI/DVI (format selected based on connected sink type) with output resolutions up to 1080p@60Hz

• Up to 8 channels of extracted LPCM audio is supported when outputting HDMI

• Analog line-level audio output signal is extracted from the first audio channel pair of the SDI source

Interface

Input Port

1 SDI (BNC)

Output Ports

1 DVI-I (Dual-link)

1 Analog Stereo (3.5mm)

Video
Input Signal Types	SD-SDI (SMPTE 259M-C), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M/425M-A)
Output Signal Types	HDMI/DVI-D
HDCP Compliance	N/A
		Resolutions
Maximum Input	SDI	1920×1080p@60
Maximum Output	HDMI/DVI	1920×1080p@60

Note: Bandwidth values represent the maximum supported by the interface. Processable signal maximums may be lower.

Audio

SDI

LPCM (8 Channels)

Line Level

Frequency Response: < ±0.8dB (20Hz to 20kHz)

THD: < 0.01% (20Hz to 20kHz)

S/N Ratio: > 70dB (1kHz with 0dBFS)

Crosstalk: < −60dB (10kHz, Vin=0dBFS)

Power
Power Supply	5V/2.6A DC (Locking)
Power Consumption	4W

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Silver
Dimensions (W×H×D)	78.5mm×30mm×100mm [Case Only] 78.5mm×30mm×124mm [All Inclusive]
Weight	194g

ORDERING INFORMATION
Model No.	Product Description
CLUX-SDI2HCA	SDI to DVI VIDEO FORMAT CONVERTER
