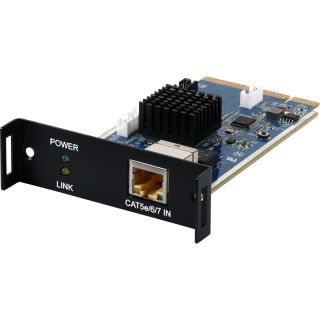

HDBaseT Receiver Module (4K@60 420 up to 40M) - Cypress SDM-E201R

HDBaseT Receiver Module (4K@60 420 up to 40M) - Cypress SDM-E201R

Artikelnummer: SDM-E201R
HAN: SDM-E201R
Kategorie: SDM
Hersteller: Cypress Technology

The HDBT Module Card is able to receive signals from compatible transmitter via Category cable, with resolutions up to 4K@60. Th ...

92,40 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung Frage zum Artikel

The HDBT Module Card is able to receive signals from compatible transmitter via Category cable, with resolutions up to 4K@60. The module card is compatible with CYP module slot, CPLUS-V32SDM. It can be combined with transmitters that have category interface. This module card offers flexible options to customers.

Signal extension for compatible module slot
Supports point to point extension for audio and video
CAT.6A/7 cable can reach up to 40 meters

Interfaces
Input Port	1 HDBaseT (RJ-45)
Output Port	1 CYP Module(Edge Connector)

Video
HDMI Compliance	HDMI 2.0 (Edge Connector)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0
Interface	Resolutions
Maximum Input	HDBaseT	4096×2160p@60 YUV 4:2:0
Maximum Output	HDMI (Edge Connector)	4096×2160p@60 YUV 4:2:0

Audio
HDMI	Bypass

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	122.2mm×25mm×82mm [Case Only] 122.2mm×25mm×82mm [All Inclusive]
Weight	60g

Field Firmware Update
CPLUS-V32SDM

ORDERING INFORMATION

Model No.	Product Description
SDM-E201R	HDBaseT Receiver Module
SDM-E201T	HDBaseT Transmitter Module
CPLUS-V32SDM	UHD+ Multi-format Matrix Switcher with USB Ethernet Hub
CSC-VPR-3421	UHD+ HDMI Multiview Processor with Multi-Function Extension Slot
