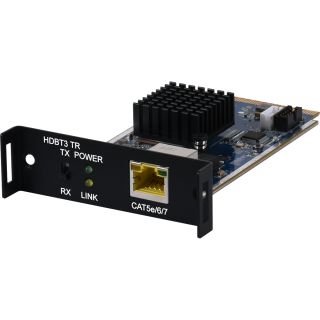

HDBaseT Transceiver Module (4K@60 444 up to 40M) - Cypress SDM-E301TR

HDBaseT Transceiver Module (4K@60 444 up to 40M) - Cypress SDM-E301TR

Artikelnummer: SDM-E301TR
HAN: SDM-E301TR
Kategorie: SDM
Hersteller: Cypress Technology

This HDBaseT Transceiver Module uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for e ...

165,43 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDBaseT Transceiver Module uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat. 5e/6/7 cable over distances of up to 40 meters. Every Transceiver can be configured to function as either a transmitter or a receiver, enhancing the flexibility of any installation. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards.

The module's design is compatible with a variety of products that have a standard CYP Module Slot for input or outputting signals, offering increased workability to customers.

HDBaseT extends video and audio over a single Cat. 5e/6/7 cable and can reach distances up to 40m/131ft
Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT
Supports HDCP repeater and CEC bypass
Supports Deep Color input and output up to 12-bit and 10-bit and 12-bit HDR (High Dynamic Range) input/output
Supports pass-through of many audio formats including LPCM (up to 8 channels), Bitstream, and HD Bitstream
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant

Interfaces
Bi-directional Port	1×HDBaseT (RJ-45)
Control	1×Slide Switch

Video
HDMI Compliance	HDMI 2.0 (Edge Connector)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:4:4
	Interface	Resolutions
Maximum Input	HDMI (Edge Connector)	4096×2160p@60Hz YUV 4:4:4
	HDBaseT (RJ-45)	4096×2160p@60Hz YUV 4:4:4
Maximum Output	HDMI (Edge Connector)	4096×2160p@60Hz YUV 4:4:4
	HDBaseT (RJ-45)	4096×2160p@60Hz YUV 4:4:4

Audio
HDMI	Bypass

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×75mm [Case Only] 128mm×25mm×75mm [All Inclusive]
Weight	72g

Field Firmware Update
CPLUS-V32SDM or CSC-VPR-3421

ORDERING INFORMATION

Model No.	Product Description
SDM-E301TR	HDBaseT Transceiver Module
SDM-E201T	HDBaseT Transmitter Module
SDM-E201R	HDBaseT Receiver Module
CSC-VPR-3421	4K60 HDMI Multiview Processor with Multi-Function Extension Slot
CPLUS-V32SDM	4K60 Multiformat Switcher with USB Ethernet Hub
