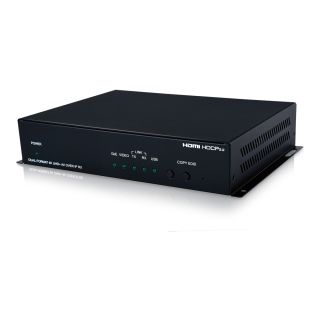

HDMI 4K UHD+ AV over IP RX - Cypress COH-RX5

HDMI 4K UHD+ AV over IP RX - Cypress COH-RX5

Artikelnummer: COH-RX5
HAN: COH-RX5
Kategorie: AV Over IP
Hersteller: Cypress Technology

This Transmitter and Receiver set is designed for high-quality, IP routable, AV extension with minimum latency. By using a sophi ...

1.521,47 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Transmitter and Receiver set is designed for high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams (HDMI or DisplayPort) and data. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multichannel HD Bitstream audio can be transmitted in pass-through mode. The use of interchangeable, fi eld replaceable, SFP+ modules allows for transmission distances of up to 30km (Maximum transmission distance depends on the SFP+ modules used.). Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB (for KVM) and Ethernet.

When combined with the optional control center or control software, the functionality of the extenders expands exponentially. Multiple Transmitters and Receivers may be combined with one or more 10Gb fi ber Ethernet switch and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their fl exibility in large event installations.

IP switchable with minimum latency (requires optional control center/ software)
Ultra-light compression, lossless for most content
Extension up to 30km (depending on the fiber module used)
Independent breakaway A/V matrix switching (requires optional control center/software)
Video wall generation (requires optional control center/software)
Multi-view compositing (requires optional control center/software
Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Genlock mode only)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,Bitstream and HD Bitstream from HDMI or DisplayPort sources
Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center/software)
Bi-directional RS-232, IR, & USB 2.0 extension
Data Transmission interfaces with 10 gigabit Ethernet via XFI, IEEE 802.3ae, compatible SFP+ fi ber modules
Supports the use of an external control center or control software to provide expanded functionality (Contact your authorized dealer for more information)

Interfaces
Input Port	1×10GbE LAN (SFP+)
Output Port	1×HDMI 1×Analog Stereo (3.5mm)
Pass-through Port	1×IR Blaster (3.5mm) 1×IR Extender (3.5mm) 1×RS-232 (DE-9) 1×LAN (RJ-45) 1×USB (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP 2.X
Input Signal Type	4096x2160p@60 8bit YUV 4:4:4, HDR10
Output Signal Type	4K@60 8bit YUV 4:4:4, HDR10

Resolutions
Maximum Input	LAN (SFP+)	4096×2160p@60 2560×1600p@60RB
Maximum Output	HDMI	4096×2160p@60 2560×1600p@60RB

Power
Power Supply	12V/3A DC
Power Consumption	12W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	213.5 mm × 44 mm × 158mm [Case Only] 215 mm × 47 mm × 153mm [All Inclusive]
Weight	960g

Field Firmware Update
Interface	Mini-USB to PC

Ordering Information
Model No.	Product Description
COH-RX5	HDMI 4K UHD+ AV over IP RX
COH-TX5	Dual-Format 4K UHD+ AV over IP TX
