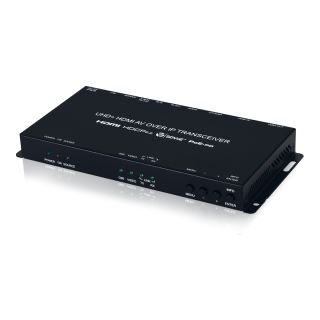

HDMI over IP Transceiver (Copper Version) - Cypress CH-V501TR

HDMI over IP Transceiver (Copper Version) - Cypress CH-V501TR

Artikelnummer: CH-V501TR
HAN: CH-V501TR
Kategorie: AV Over IP
Hersteller: Cypress Technology

This Transceiver is designed for high-quality, IP routable, AV extension with zero latency. Each single Transceiver can be confi ...

1.385,96 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Transceiver is designed for high-quality, IP routable, AV extension with zero latency. Each single Transceiver can be confi gured as either a Transmitter or a Receiver depends the requirement of installation facility. The 4K@60 high quality video with HDR 10 bits and multi-channel HD Bitstream audio are able to transmit in pass through mode over Cat.6A up to 100m extension.

Visually lossless compression with zero latency
Video wall and multi viewer supported (requires optional control center/ software)
Independent breakaway A/V matrix switching (requires optional control center/software)
Pass-through of 10/12-bit HDR sources (Point-to-point and Genlock modes only)
Pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI sources
Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center/software)
Unit can be powered directly by PoE (802.3at) when connected to a 10-Gigabit Ethernet
Supports the use of an external control center or control software to provide expanded functionality (Contact your authorized dealer for more information)

Interfaces
Input Port	1 HDMI (Type A)
Output Port	1 HDMI (Type A)
Bi-directional Port	1 10GbE LAN (RJ-45)
Control I/O	1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (3-pin Terminal Block) 1 Ethernet (RJ-45)
Audio	1 Unbalanced Stereo (3.5mm) Transmitter: Audio In or Out (depends confi guration) Receiver: Audio Out
Service Port	1 USB (Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160p@60 8bit YUV4:4:4, HDR10
Output Signal Type	4096x2160p@60 8bit YUV4:4:4, HDR10

Resolutions
Maximum Input	HDMI	4096×2160p@60 2560×1600p@60RB
	Ethernet	4096×2160p@60 2560×1600p@60RB
Maximum Output	HDMI	4096×2160p@60 2560×1600p@60RB
	Ethernet	4096×2160p@60 2560×1600p@60RB

Audio
Digital Formats	HDMI	8CH LPCM, Bitstream, HD Bitstream
Analog Formats	Unbalanced	2 Channel
Line Level	Frequency Response: < ±0.5dB (20Hz to 20kHz) THD: < 0.02% (20Hz to 20kHz) S/N Ratio: > 80dB (1kHz with 0dBFS) Crosstalk: < −80dB (10kHz, Vin=0dBFS)

Power
Power Supply	12V/3A (Locking)
Power Consumption	30W (Full load)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×116.7mm [All Inclusive]
Weight	552g

Ordering Information
Model No.	Product Description
CH-V501TR	HDMI over IP Transceiver (Copper Version)
CDPS-CS7-S	AV over IP Master Controller
