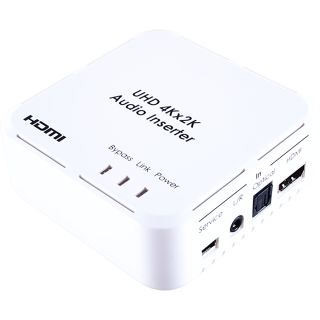

The HDMI? 4K x 2K Audio Inserter lets you insert an external audio signal intoyour HDMI or DVI (with HDMI to DVI adaptor) signal path. The unit allows you to insert stereo or multi-channel surround sound signals to give users the capability to select audio formats while extending your HDMI signal. Further, both input and output HDMI support HD resolution up to 3D and 4K x 2K allowing a full enjoyment over synchronize video and audio.
- Compliant with HDMI, HDCP 1.2 and DVI 1.0
- Supports HDMI audio sampling rate up to 192 kHz
- Supports Optical S/PDIF audio sampling rate up to 192 kHz
- Supports L/R audio sampling rate up to 48 kHz
- Supports external HDMI, Digital or Analog audio signal embeds into HDMI
- HDMI supports high-bit-rate (HBR) audio
- Maximum input and output HDMI cable length can run up to 15 meters at 1080p at 8-bit resolution or 10 meters at 1080p at 12-bit resolution
- Supports DVI conversion with HDMI to DVI adaptor
- Supports CEC bypass
- Supports 4Kx2K resolution and 3D signal
Note: When displaying HDMI 4Kx2K signal, equivalent source signal,output display and HDMI cables are required in order to secure the best image display.
Video Bandwidth | 300 Mbps/10.2 Gbps |
Input Ports | 1×HDMI, 1×Optical, 1×3.5mm Mini-jack, 1×Mini-USB (Manufacturer use only) |
Output Port | 1×HDMI |
Audio Sampling Rates | HDMI: Up to 192 kHz S/PDIF (Optical): Up to 192 kHz |
HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master Audio |
Optical Audio Formats | LPCM 2CH, Dolby Digital 2~5.1CH & DTS 2~5.1CH |
L/R Audio Format | Analog Stereo 2CH |
HDMI Cable I/O Distance | 15 m (1080p@8-bit), 10 m (1080p@12-bit), 10 m (4K×2K) |
Power Supply | 5V/1.2A DC ( US/EU standards, CE/FCC/UL certified) |
ESD Protection | Human body model: ±8kV (air-gap discharge) ±6kV (contact discharge) |
Dimensions | 85 mm (W)×87.5 mm (D)×34mm(H) |
Weight | 102 g |
Chassis Material | Plastic |
Color | White |
Operating Temperature | 0 ?C~40?C / 32 ?F~104 ?F |
Storage Temperature | ?20 ?C ~ 60 ?C / ?4 ?F ~ 140 ?F |
Relative Humidity | 20 ~ 90 % RH (non-condensing) |
Power Consumption | 2.37 W |
