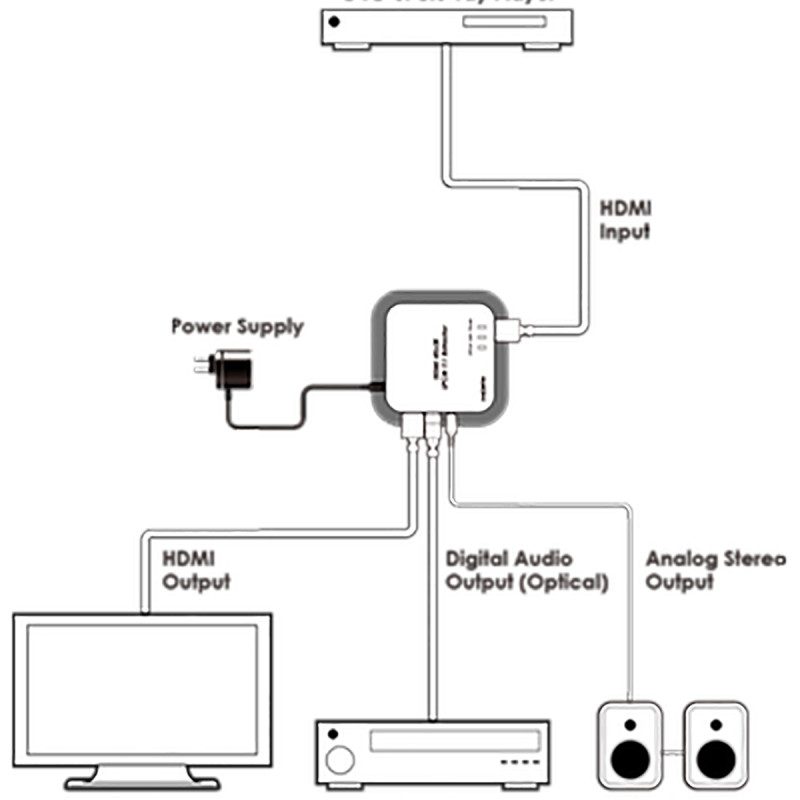

This HDMI Audio Extractor can extract up to 2 channels of LPCM audio or 5.1 channels of Bitstream audio from an HDMI source, allowing the user to convert high quality HDMI audio into more convenient analog (LPCM 2.0 sources only) or optical signals for use with powered speakers or non-HDMI AV receivers. Both the input and output HDMI ports support UHD resolution up to 4K@30Hz(4:4:4, 8-bit) are capable of providing high quality audio and video performance.
? Supports HDMI and S/PDIF audio sampling rates up to 192kHz
? Analog audio extraction supports LPCM 2.0 sources , audio sampling rate up to 48 kHz
? Optical S/PDIF audio extraction supports LPCM 2.0 & Bitstream formats
? No HDMI output connection is required to receive audio at the analog and optical outputs
? Supports analog stereo L/R and Optical S/PDIF audio outputs

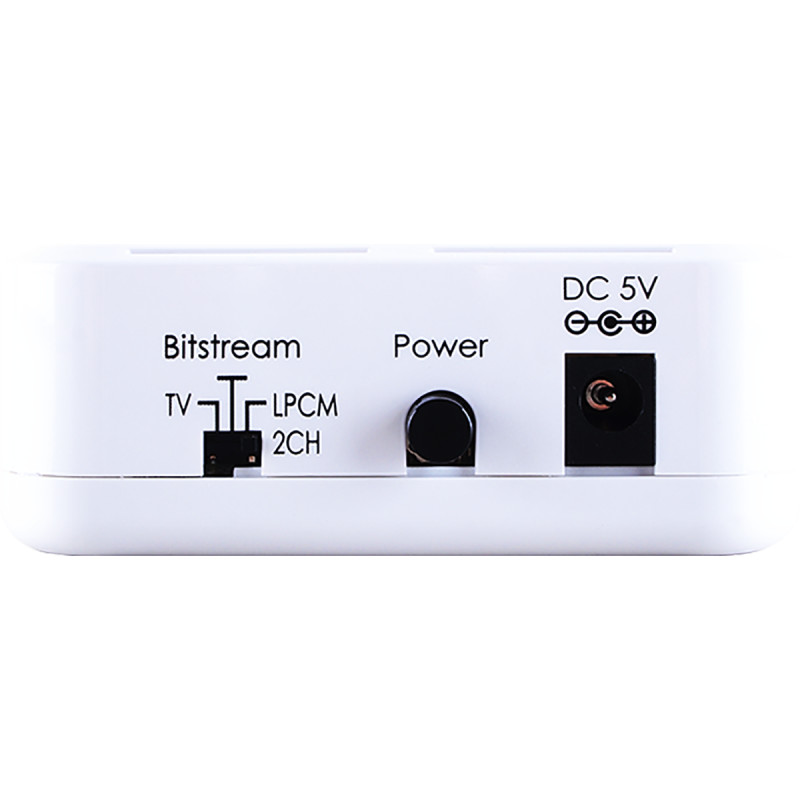

? Supports built-in audio EDID switching among LPCM 2CH, TV (external) EDID, and Bitstream audio
? Supports 4K@30Hz resolution and 3D signal
Note: When displaying HDMI 4K@30 signal, equivalent source signal, output display and HDMI cables are required in order to secure the best image display.
Video Bandwidth | 300Mbps / 10.2Gbps |

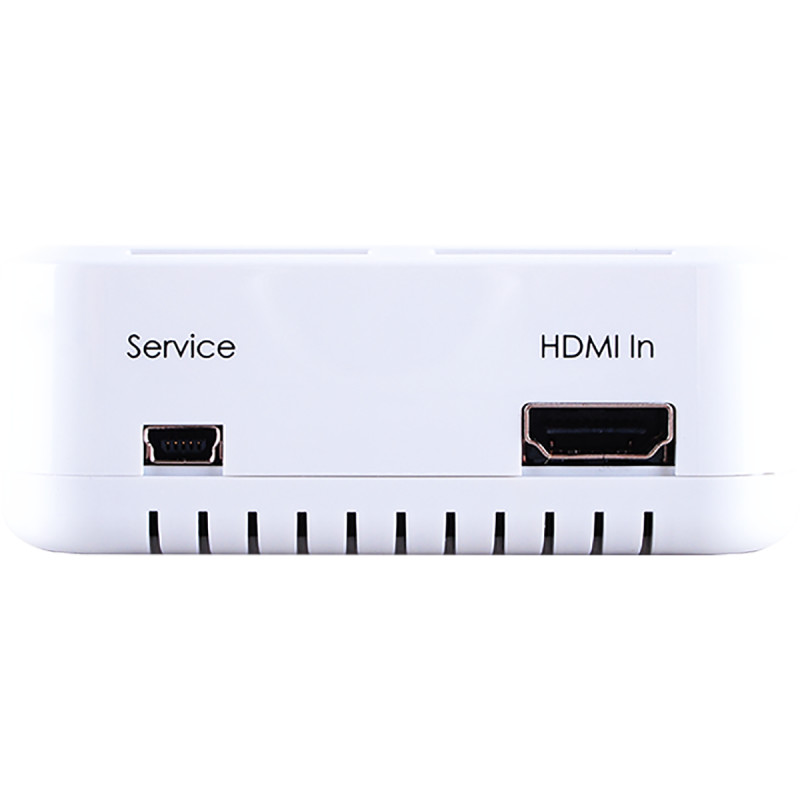

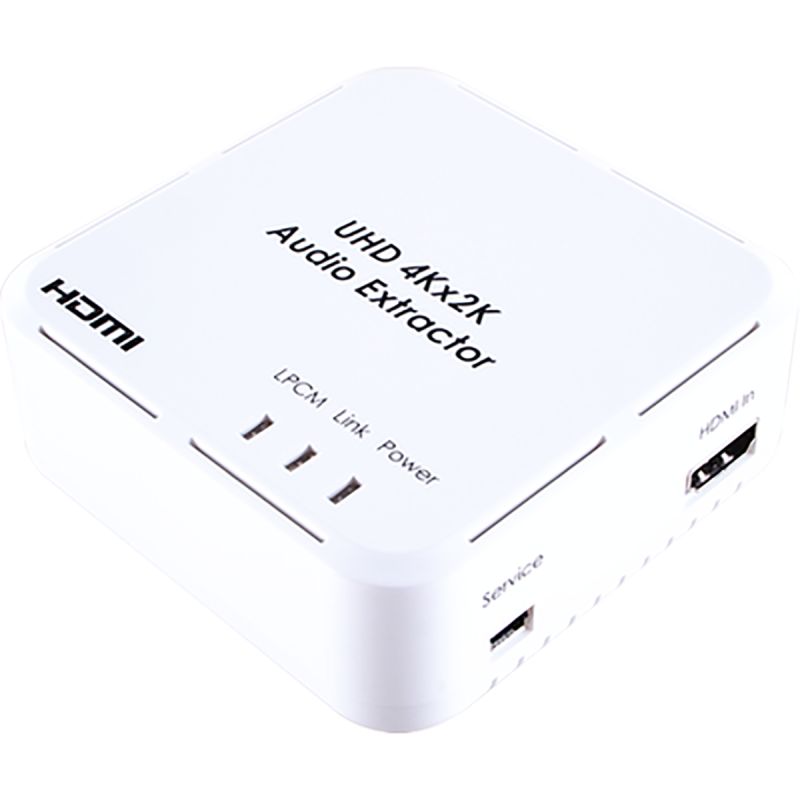

Input Ports | 1 x HDMI, 1 x Mini-USB (service only) |

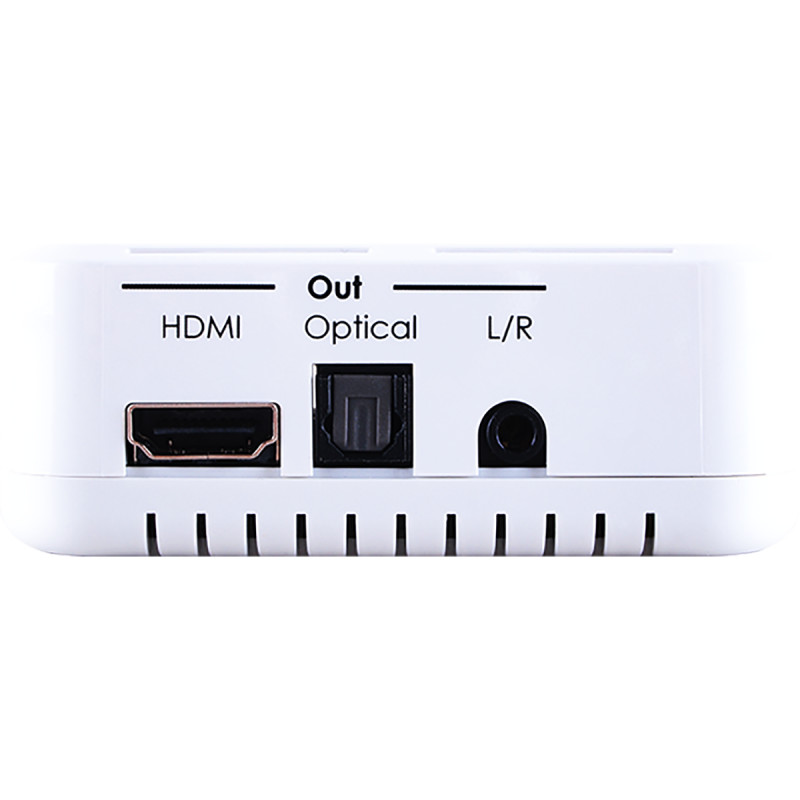

Output Ports | 1 x HDMI, 1 x Optical, 1 x L/R(3.5mm Phone Jack) |
HDMI Audio Sampling Rate | Up to 192 kHz |
Optical S/PDIF Audio Sampling Rate | Up to 192 kHz |
L/R Audio Sampling Rate | Up to 48 kHz |
HDMI Audio Format | LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio |
Optical Audio Format | LPCM 2CH, Dolby Digital 2~5.1CH, and DTS 2~5.1CH |
L/R Audio Format | Analog Stereo 2 CH |
HDMI I/O Cable Distance 4Kx2K | 10m/10m |
Power Supply | 5V / 1.2A DC ( US/EU standards, CE/FCC/UL certified) |
ESD Protection (HBM) | ±8kV (Air Discharge) ±4kV (Contact Discharge) |
Dimensions (W×H×D) | 85mm x 34mm x 87.5mm |
Weight (g) | 102 |
Chassis Material | Plastic |
Silkscreen Color | White |
Operating Temperature | 0?C~40?C / 32?F~104?F |
Storage Temperature | -20?C ~ 60?C / -4 ?F ~ 140 ?F |
Relative Humidity | 20 ~ 90% RH (non-condensing) |
Power Consumption | 2.2W |
