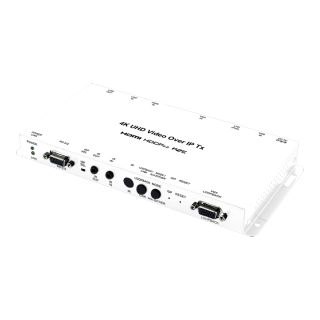

HDMI/VGA over IP Transmitter with USB/KVM Extension - Cypress CH-U350TX-W

Artikelnummer: CH-U350TX-W

Herstellernummer: CH-U350TX-W

This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using ...

Kategorie: AV over IP

Preis auf Anfrage
Muss bestellt werden. Ab Bestellung lieferbereit in 35 Tagen.

This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Defi nition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the extension system?s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity

  • Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many) modes
  • Support with 90° increments rotation
  • The analog Line In on the Transmitter sends audio directly to the analog Line Out and is inserted into the HDMI output on connected Receivers
  • The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
  • Both Tx and Rx may powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
  • Supports USB keyboard, mouse and storage extension and IR ,RS-232 bypass
  • Unit can be controlled via WebGUI, Telnet, and front panel controls
Interfaces
Input Port
  • 1 HDMI (Type-A)
  • 1 VGA
  • 1 Unbalanced Stereo (3.5mm)
Output Port
  • 1 VGA
  • 1 Cat.5e/6/7 (RJ45)
  • 1 Unbalanced Stereo (3.5mm)
Control I/O
  • 1 USB Type-B
  • 1 IR Extender [3.5mm]
  • 1 IR Blaster [3.5mm]
  • 1 RS232
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.2
Input Signal Types
  • 4K@60 8-bit YUV 4:2:0
Output Signal Types
  • 4K@60 8-bit YUV 4:2:0
Resolutions
Maximum Input

HDMI

  • 4096×2160p@60
 VGA
  • 1920×1200p@60RB
Maximum OutputVGA
  • 1920×1200p@60RB
 Cat.5e/6/7
  • 4096×2160p@60
Audio
Input Signal Types
  • HDMI, Unbalanced Stereo
Output Signal Types
  • Unbalanced Stereo
Digital Formats
  • HDMI 2CH LPCM, 8CH LPCM, Standard Bitstream
Power
Power Supply
  • 5V/2.6A
Power Consumption
  • 7.15W (Full load)
Enclosure
Chassis Material
  • Metal (Steel)
Chassis Color
  • Black
Dimensions (W×H×D)
  • 231.5mm×25mm×108mm [Case Only]
  • 231.5mm×25mm×120mm [All Inclusive]
Weight
  • 660g
Field Firmware Update



Interface
  • WebGUI
Ordering Information
Model No.Product Description
CH-U350TX
  • HDMI/VGA over IP Transmitter with USB/KVM Extension
CDPS-CS7
  • IP Master controller
CH-U331TX
  • HDMI/VGA over IP Transmitter with USB/KVM Extension
CH-U331RX
  • HDMI/VGA over IP Receiver with USB/KVM Extension
CH-331H-TX
  • HDMI over IP Transmitter
CH-331H-RX
  • HDMI over IP Receiver
